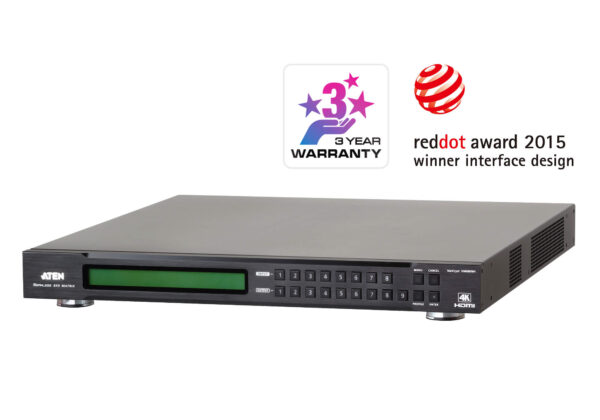

Aten Matrix Switch, HDMI, 8 Port with 9 Output – VM6809H
R170,510.19
• 8 x 9 HDMI input/output connections
• Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
• HDMI (3D, Deep colour, 4K); HDCP 2.2 compatible

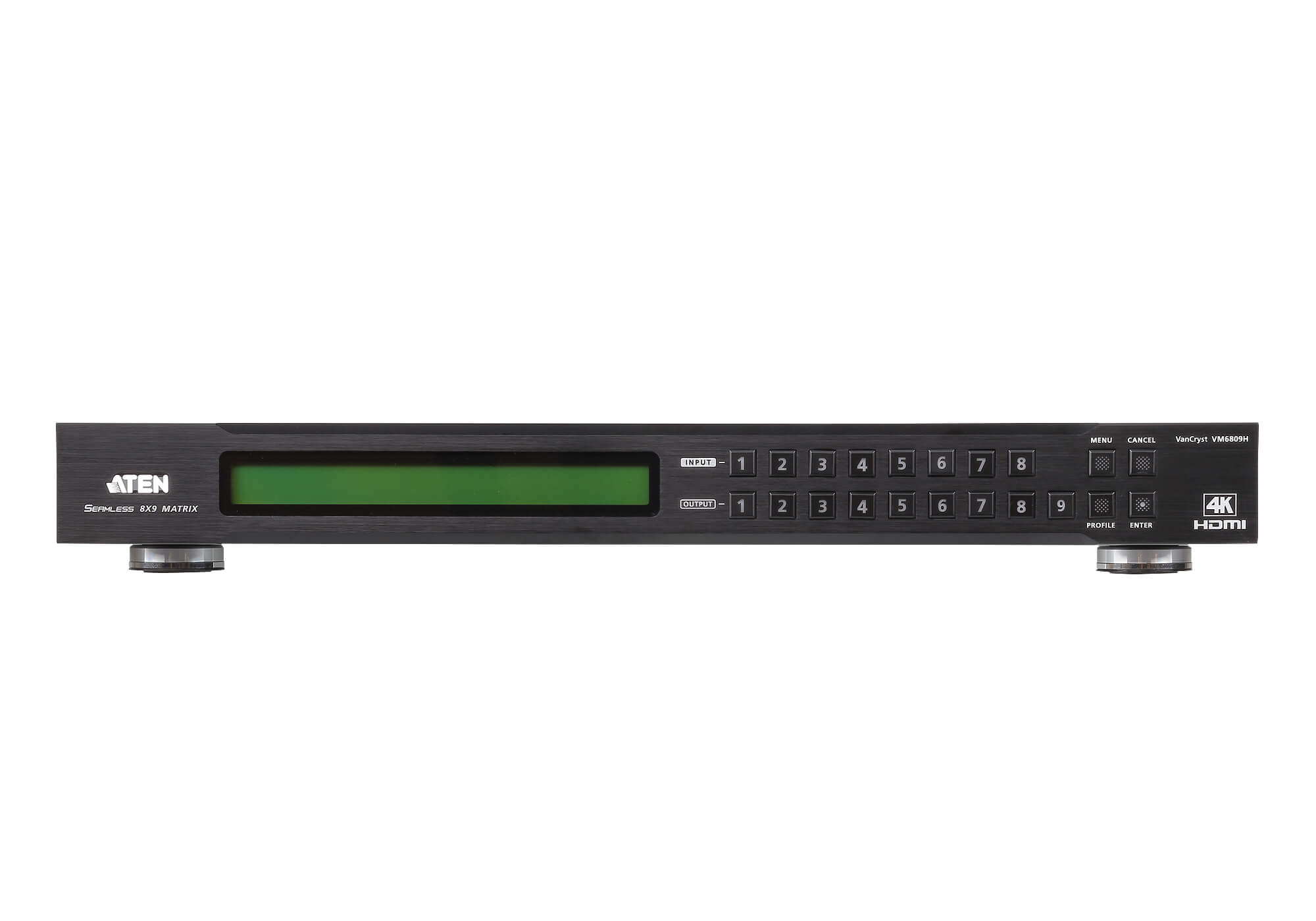

• Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Web GUI/Telnet via Ethernet connections
- Brand :Aten
- SKU :ATEN-VM6809H
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
4K is the next generation of image quality for high definition video, which delivers eight million pixels that is four times as much detail as 1080p Full HD resolutions. ATEN’s VM6809H 4K HDMI Matrix Switch with Scaler is compatible with the two latest 4K video resolution standards: 3840 x 2160 and 4096 x 2160. The VM6809H offers powerful HD processing to produce 4K resolutions across nine displays with crystal-clear images.
The VM6809H supports 4K @ 60 Hz, HDMI 2.0* and HDCP 2.2 and features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6809H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create 17 connection profiles that can be customized into different video wall layouts.
The VM6809H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup – such as for stage presentations, digital classroom, video conference rooms and any installation that requires real-time synchronization.
*Note: HDMI 2.0 supports 3840 x 2160 @ 30 Hz (4:4:4), 3840 x 2160 @ 60 Hz (4:2:0), 4096 x 2160 @ 30 Hz (4:4:4), 4096 x 2160 @ 60 Hz (4:2:0) resolutions.
Package Contents
1x VM6809H 8 x 9 4K HDMI Matrix Switch with Scaler
1x Power Cord
1x Rack Mounting Kit
1x User Instructions

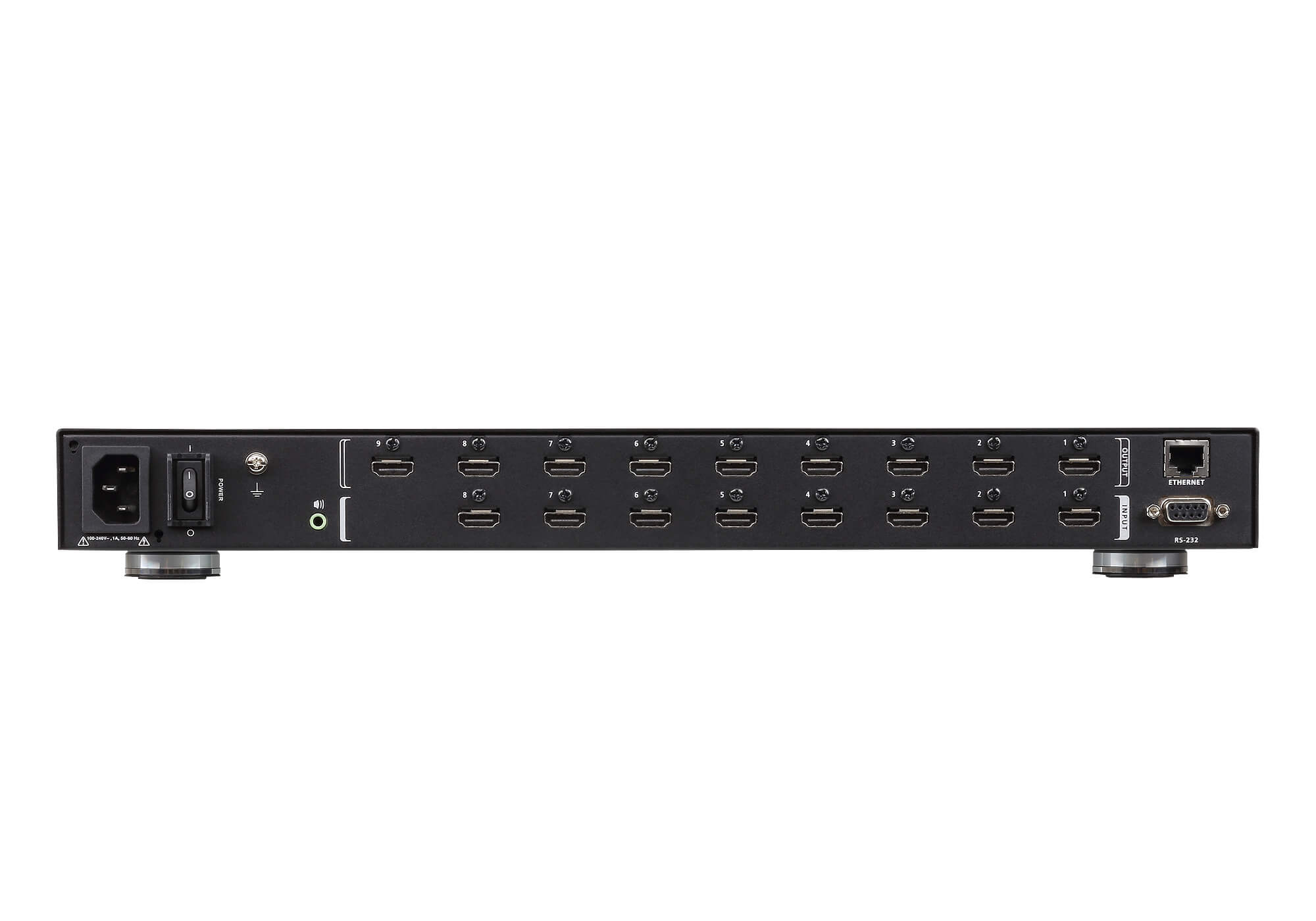

Video Input
| Interfaces | 8 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 3.0 m |
Video Output
| Interfaces | 9 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 15 m |
Video
| Max. Data Rate | 10.2 Gbps (3.40 Gbps per lane) |
|---|---|
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Colour, 4K); HDCP 2.2 Compatible; Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Distance | Up to 15 m |
Audio
| Output | 1 x Mini Stereo Jack Female (Green) |
|---|
Control
| RS-232 | Connector: 1 x DB-9 Female (Black); Baud Rate: 19200, Data Bits: 8, Stop Bits: 1, Parity: No, Flow Control: No |
|---|---|
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) |
Connectors
| Power | 1 x 3-prong AC Socket |
|---|
Power
| Maximum Input Power Rating | 100-240 VAC;50-60Hz;1.0A |
|---|---|
| Power Consumption | AC110V:79.5W:373BTU AC220V:78.1W:366BTU |
Environmental
| Operating Temperature | 0-50°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 7.05 kg ( 15.53 lb ) |
| Dimensions (L x W x H) | 43.24 x 45.03 x 4.40 cm (17.02 x 17.73 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
