AV Signal Distribution

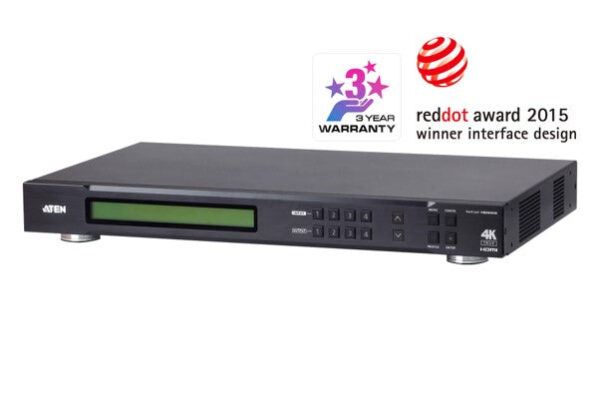

Aten Matrix Switch, True 4K HDMI, 4 Port – VM0404HB
R21,375.13
• Connects any of 4 HDMI sources to any of 4 HDMI displays
• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
• Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
• HDMI (3D, Deep Colour, 4K) and HDCP 2.2 compatible
- Brand :Aten
- SKU :ATEN-VM0404HB
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
ATEN’s VM0404HB is a True 4K HDMI Matrix Switch series that offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays. Featured with the superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), the VM0404HB delivers robust signal routing and ultra-fast digital video switching, making it perfect for applications where routing of True 4K digital signals is required, such as event venues, digital classrooms, auditoriums, department stores, and more.
The intuitive GUI design of the VM0404HB allows users to flexibly configure any input to output connections, eliminating the need of frequent physical configuration changes. In addition to the built-in web GUI, the VM0404HB can be operated through front-panel pushbuttons, IR remote, RS-232 control, and Telnet via Ethernet connections, giving users the ultimate convenience while keeping the system available with performance video switching anytime.
Package Contents
1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch
1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Rack Mounting Kit
1x User Instructions
Features:
Connects any of 4 HDMI sources to any of 4 HDMI displays
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports HDR10+
Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
View and control via ATEN Video Matrix Control App in a swift and agile way
EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Signalling rates up to 6 Gbits for flawless true 4K output
Supports Dolby True HD and DTS HD Master audio
HDMI (3D, Deep Colour, 4K) and HDCP 2.2 compatible
Supports Consumer Electronics Control (CEC)
ESD protection for HDMI
Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
Firmware upgradeable
Rack mountable (1U design)
Video Input
| Interfaces | 4 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 5.0 m / 4K@60Hz (4:4:4) |
Video Output
| Interfaces | 4 x HDMI Type A Female (Black) |
|---|---|
| Max. Distance | 5m / 4K@60Hz (4:4:4) 15m / 1920 x 1200 |
| Impedance | 100 Ω |
Video
| Max. Pixel Clock | 600 MHz |
|---|---|
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Data Rate | 18 Gbps( 6 Gbps Per Lane) |
| Compliance | HDMI (3D, 4K, Deep Colour) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
Control
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
|---|---|
| IR | 1 x Mini Stereo Jack Female (Black) |
| Ethernet | 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) |
Environmental
| Operating Temperature | 0-40°C |
|---|---|
| Humidity | 0 - 80% RH, Non-Condensing |
| Storage Temperature | 20 - 60°C |
Physical Properties
| Weight | 2.47 kg ( 5.44 lb ) |
|---|---|
| Housing | Metal |
| Dimensions (L x W x H) | 43.72 x 15.28 x 4.40 cm (17.21 x 6.02 x 1.73 in.) |
Connectors
| Power | 1 x 3-Prong AC Socket |
|---|---|
| Carton Lot | 1 pc |
| Power Consumption | AC110: 17.8W:83BTU/h AC220:17.6W:83BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Power
| Maximum Input Power Rating | 100-240 VAC; 50-60 Hz; 1.0A |
|---|
You must be logged in to post a review.
VM0404HB Datasheet PDF
In Stock
Reviews
There are no reviews yet.
