KVM Signal Distribution

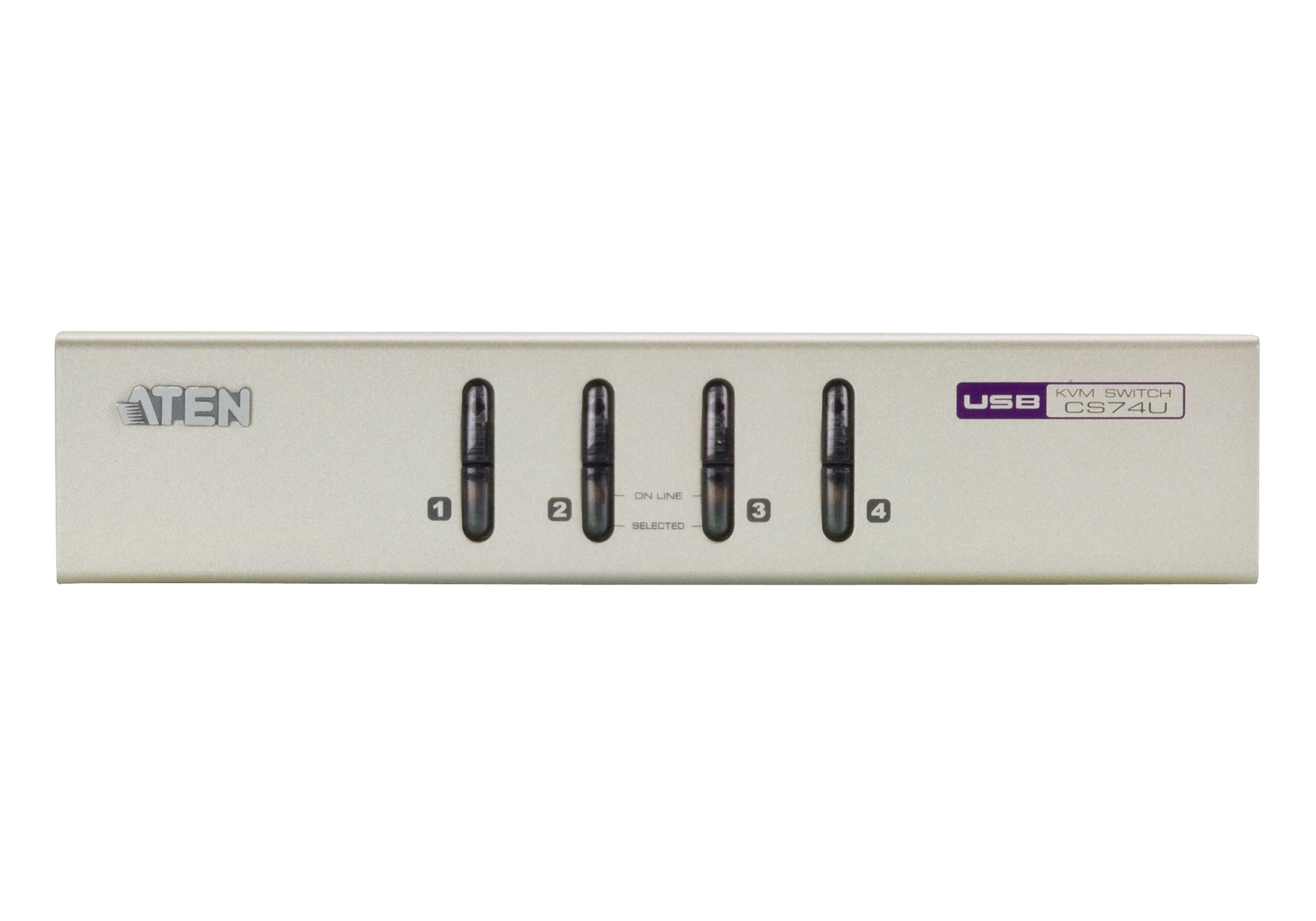

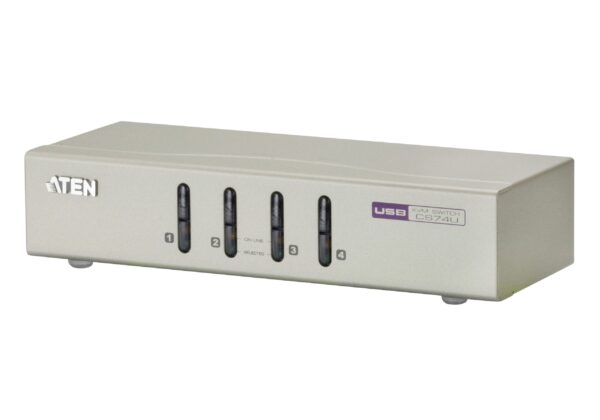

Aten KVM Switch, USB VGA/Audio, 4 Port – CS74U
R3,155.79
• Superior video quality – 2048 x 1536; DDC2B
• Computer selection via front panel pushbuttons
• Audio enabled and multiplatform support - Windows, Linux and Mac
• Bus-powered design
- Brand :Aten
- SKU :ATEN-CS74U
- Category :KVM Signal Distribution
- Availability :Out of Stock
Out of stock
Description
• The CS74U 4-Port USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (keyboard and mouse, audio and VGA monitor).
• With the CS74U, you can access computers conveniently using port selection pushbuttons located on the unit’s front panel.
• Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS74U intercepts keyboard input directly, it will work on multiple computing platforms.
• Package Contents
1x CS74U 4-Port USB KVM Switch
2x Custom KVM Cable (VGA, USB, Audio; 1.2m/4ft)
2x Custom KVM Cable (VGA, USB, Audio; 1.8m/6ft)
1x User Instructions
| Computer Connections | 4 |
|---|---|
| Port Selection | Pushbutton |
Connectors
| Console Ports | 2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 1 x mini stereo Jack Female (Pink) 1 x mini stereo Jack Female (Green) |
|---|---|
| KVM Ports | 4 x SPHD-18 Female (Green) |
| Power | 1 x DC 5V Jack (Spare) |
LEDs
| Online | 4 (Orange) |
|---|---|
| Selected | 4 (Green) |
Switches
| Selected | 4 x Pushbuttons |
|---|---|
| Video | 2048 x 1536 @ 60 Hz; DDC2B |
| Power Consumption | DC5V:0.177W:5BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental
| Operating Temperature | 0-50°C |
|---|---|
| Storage Temperature | 20-60°C |
| Humidity | 0 - 80% RH, Non-condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.64 kg ( 1.41 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.65 x 4.40 cm (7.87 x 3.01 x 1.73 in.) |
