AV Signal Distribution

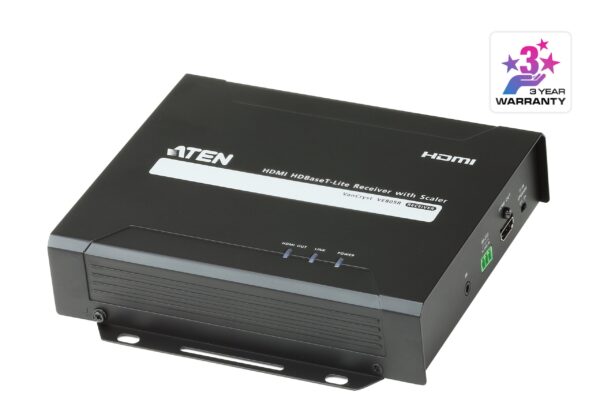

Aten Extender, HDMI, HDBaseT – Lite, Receiver with Scaler – VE805R
R13,289.57
• HDBaseT Connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6a cable
• Scaler – features a scaling function to integrate a video wall seamlessly with various output formats
• Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
• Video Wall – features configurable video wall profiles available for custom screen layouts via simple point-n-click web GUI
- Brand :Aten
- SKU :ATEN-VE805R
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend your HDMI display up to 60 m from your HDMI source device using a single Cat 5e/6a cable.
With a built-in scaler, the VE805R supports scaling the display of different video resolutions. When combined with the ATEN VM8514 HDBaseT Output Board, it supports video wall integration and Seamless Switch™ functions. In addition, the VE805R is equipped with RS-232 and IR signalling pass-through, which allows RS-232 and IR channels to be controlled either from the remote to local unit or from the local to remote unit for bi-directional control of the source or display device.
Package Contents
1x VE805R HDMI HDBaseT-Lite Receiver with Scaler
1x Power Adapter
1x IR Transmitter
1x IR Receiver
1x Terminal Block
1x User Instructions
Video Input

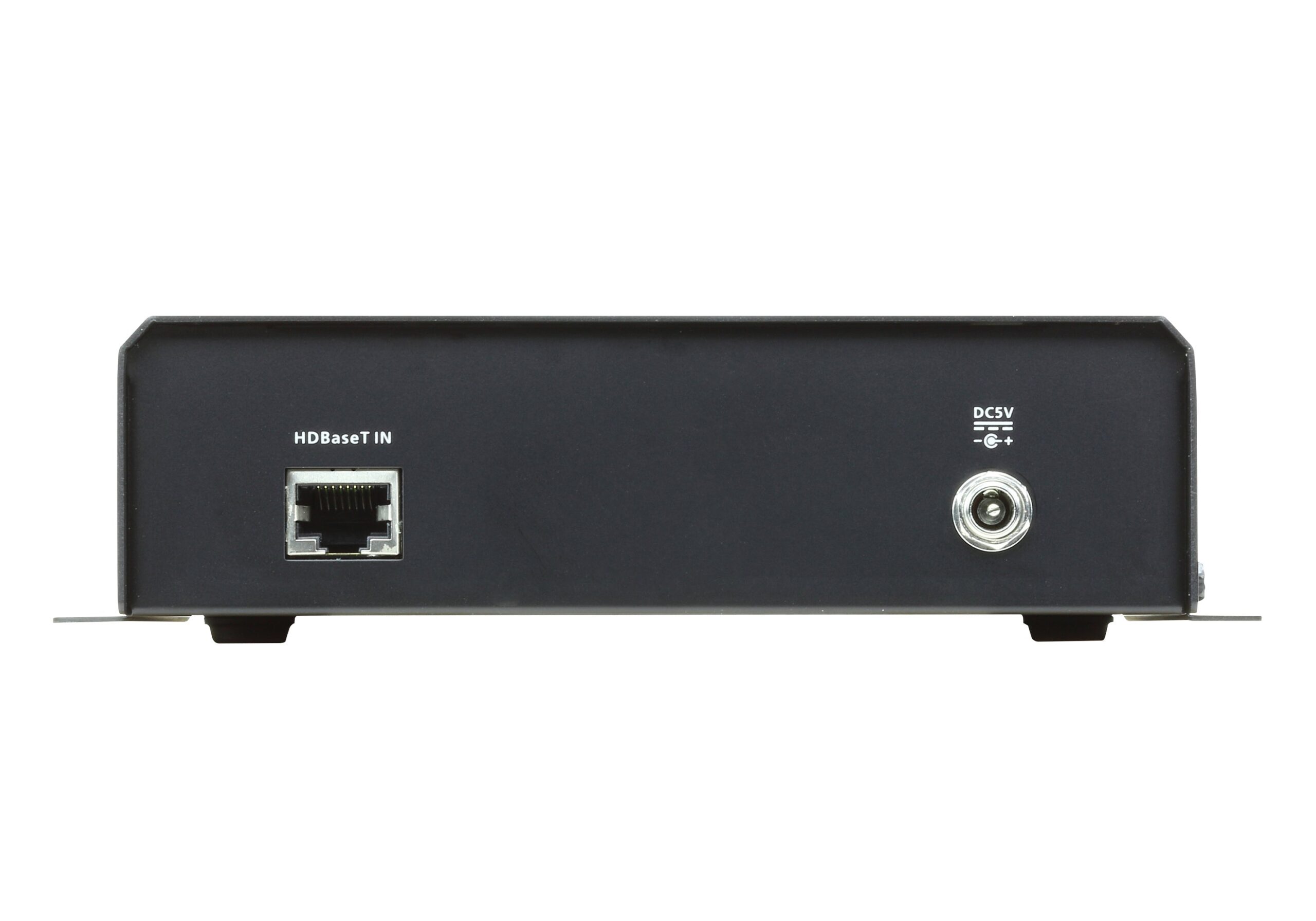

| Interfaces | 1 x RJ-45 Female (Silver) |
|---|---|
| Impedance | 100 Ω |
Video Output
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 3 m |
Video
| Max. Data Rate | 6.75 Gpbs (2.25 Gbps per lane) |
|---|---|
| Max. Pixel Clock | 225 MHz |
| Compliance | HDMI (3D, Deep Colour) HDCP 1.4 Compatible HDBaseT Compatible |
| Max. Resolutions / Distance | Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a) |
Control

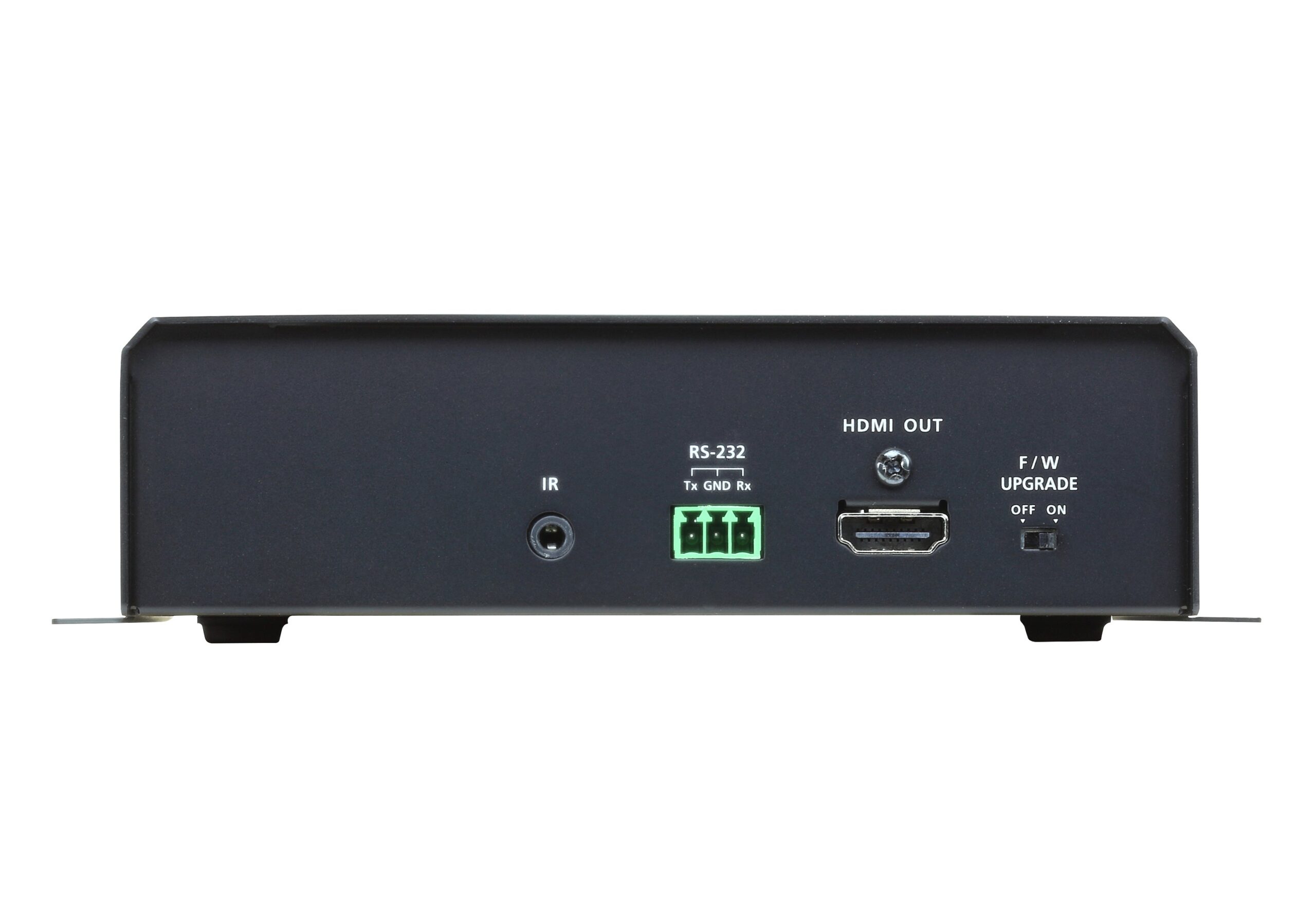

| RS-232 | 1 x Captive Screw Connector, 3 Pole |
|---|---|
| IR | 1 x Mini Stereo Jack Female (Black) |
Connectors
| Power | 1 x DC Jack (Sliver) |
|---|
Switches
| Firmware Upgrade | 1 x Slide Switch |
|---|---|
| Power Consumption | DC5V:8.36W:39BTU |
Environmental
| Operating Temperature | 0 - 50°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.81 kg ( 1.78 lb ) |
| Dimensions (L x W x H) | 17.74 x 16.92 x 4.20 cm (6.98 x 6.66 x 1.65 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
You must be logged in to post a review.
VE805R Datasheet PDF
