AV Signal Distribution

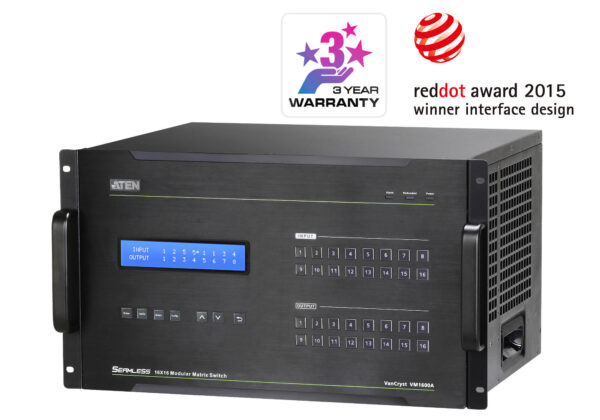

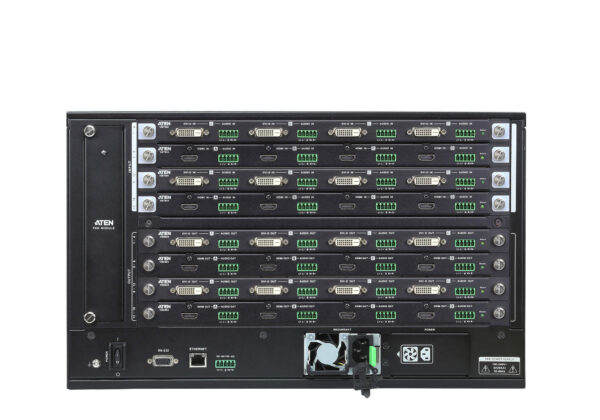

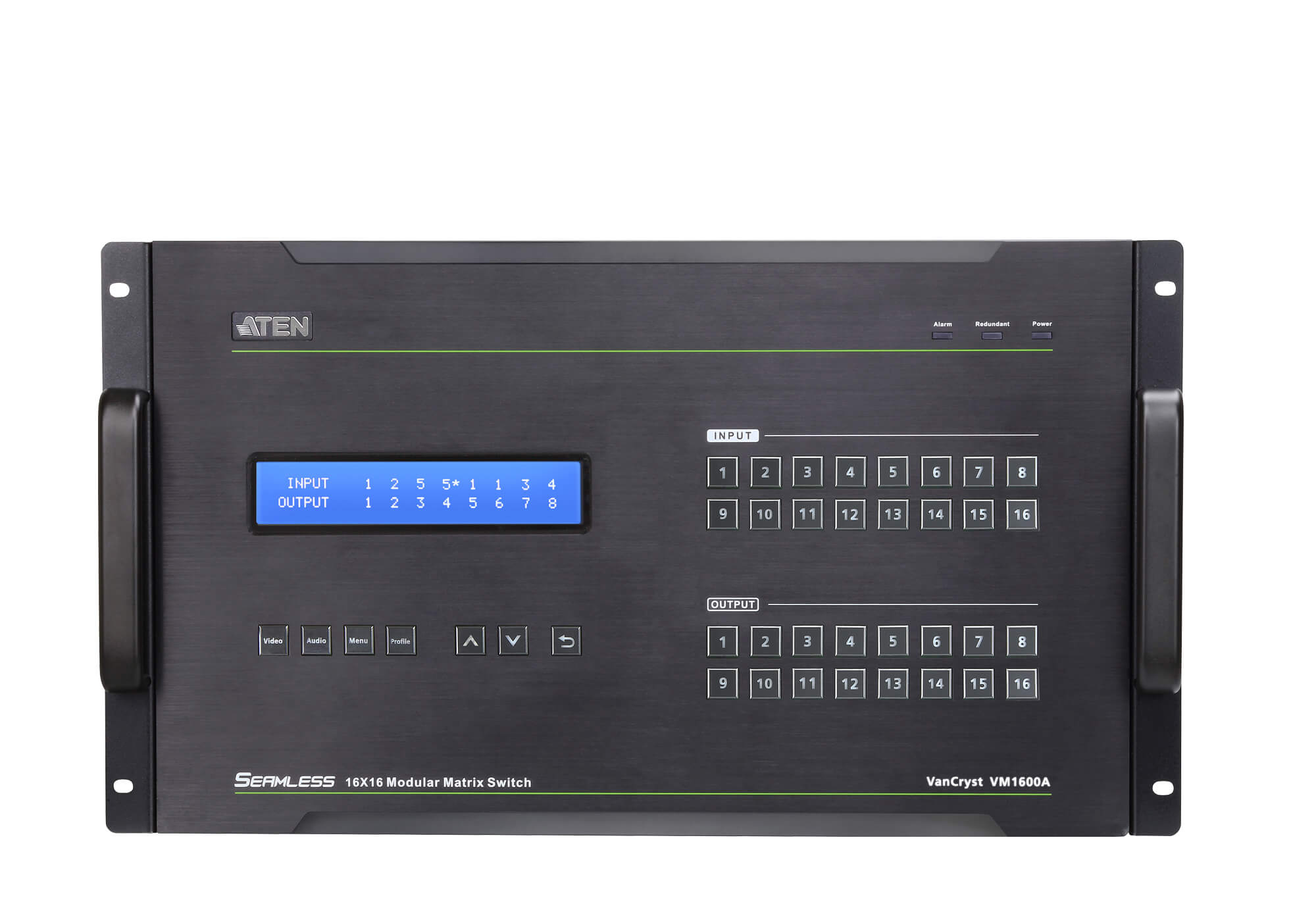

Aten Matrix Switch, HDMI, 16 Port Modular – VM1600A
R123,645.70
• Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix Solutions
• Hot-pluggable: Modular Fan Design Power Module Easy integration of I/O boards
• Optional redundant power supply for continuous operation
• Multiple Control Methods – system management via front-panel pushbuttons, RS-232 control, and Ethernet connections (Web GUI)
- Brand :Aten
- SKU :ATEN-VM1600A
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centres, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
Package Contents
1x VM1600A Modular Matrix Switch
1x Power Cord
1x Terminal Block connector
1x Fan Module (pluggable)
1x Power Module (pluggable)
1x User Instructions
| Board Output | 4 x Slot |
|---|---|
| Board Input | 4 x Slot |
Video Input
| Interfaces | Depends on which I/O board is inserted |
|---|---|
| Max. Data Rate | 15.2 Gbps (3.8Gbps per Lane) |
Audio
| Input | Depends on which Input board is inserted |
|---|---|
| Output | Depends on which Output board is inserted |
Control
| RS-232 | Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate:19200, Data Bits:8, Stop Bits:1, Parity: No, Flow Control: No |
|---|---|
| RS-485/RS-422 | Connector: 1 x Captive Screw Connector, 5 Pole |
| Ethernet | Connector: 1 x RJ-45 Female |
| EDID Settings | EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support) |
Connectors
| Power | 1 x 3-Prong AC Socket |
|---|
Power
| Maximum Input Power Rating | 100-240 VAC; 50/60Hz; 3/6 A |
|---|---|
| Power Consumption | AC110V:460W:166BTU AC220V:460W:156BTU |
| Fan | Airflow: 55.2 cfm Operating Voltage: 10.2 - 12VDC Operating Temp: -10 - 60°C |
Environmental
| Operating Temperature | 0 - 40°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 15.11 kg ( 33.28 lb ) |
| Dimensions (L x W x H) | 48.20 x 46.66 x 26.59 cm (18.98 x 18.37 x 10.47 in.) |
| Rack Height (U Spaces) | 6U |
| Carton Lot | 1 pc |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
