AV Signal Distribution

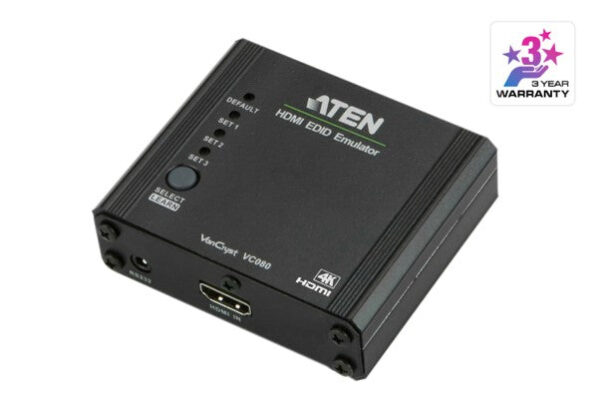

Aten Emulator, HDMI – VC080
R2,161.01
• Automatically manages EDID communication between connected devices
• EDID Wizard – allows a user an easy way to manage EDID settings
• EDID mode selection – Default, Learning , Programming
• HDMI (3D, Deep Colour), HDCP compatible
- Brand :Aten
- SKU :ATEN-VC080
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.
Package Contents
1x VC080 4K HDMI EDID Emulator with Programmer
1x RS-232 Configuration Cable(1.8 m)
1x USB to DC Power Cord
1x User Instructions
Features
Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
EDID Wizard – allows a user an easy way to manage EDID settings
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
EDID mode selection – Default, Learning , Programming
HDMI (3D, Deep Colour), HDCP compatible
Supports Dolby True HD and DTS HD Master Audio
Automatically manages EDID communication between connected devices
Signalling rates up to 2.25 Gbits in support of 1080p display
LED indication of video source devices
Supports wide screen
Supports hot-plugging
Non-Powered *
* If the video source is not receiving enough power an external power cord should be connected.
| Max. Video Resolution | 4096*2160@30Hz (4:4:4) 3840*2160@30Hz (4:4:4) |
|---|---|
| Data Rate | 10.2 Gbps |
Video Input
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
Video Output
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
Video
| Compliance | HDMI 1.4 (3D, Deep Colour) HDCP Compatible Consumer Electronic Control (CEC) |
|---|
Audio
| Output | 1 x HDMI Type A Female (Black) |
|---|---|
| EDID Settings | EDID Mode: Default / Learn / Customized (EDID Wizard support) |
Connectors
| Power | 1 x DC Jack |
|---|---|
| Power Consumption | DC5V:0.17W:1BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental
| Operating Temperature | 0 - 50 ºC |
|---|---|
| Storage Temperature | 20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.15 kg ( 0.33 lb ) |
| Dimensions (L x W x H) | 7.90 x 7.76 x 2.45 cm (3.11 x 3.06 x 0.96 in.) |
| Carton Lot | 5 pcs |
