AV Signal Distribution

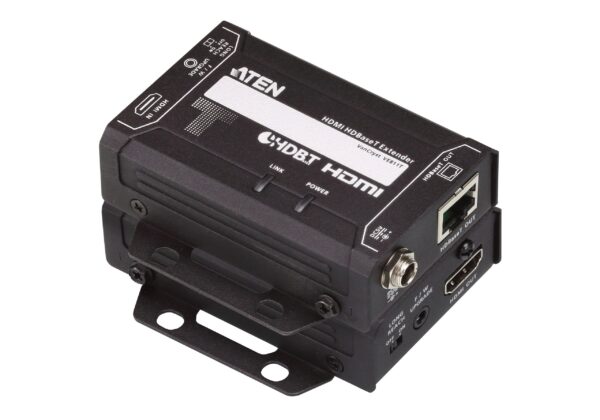

Aten Extender, HDMI, HDBaseT, Receiver – VE811R
R5,246.29
• HDBaseT connectivity – extends 4K HDMI signals up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
• Supports resolutions of up to 4K and 1080p
• HDCP 2.2 compatible
- Brand :Aten
- SKU :ATEN-VE811R
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The ATEN VE811R HDMI HDBaseT Extender guarantees the optimum 4K HDMI signal transmission across up to 100 m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. In addition, with the support for Long Reach Mode, it extends HDMI signals @ 1080p up to 150 m via a single Cat 5e/6 cable. The VE811R meets HDMI specification features, including 3D, Deep Colour, HD lossless audio formats and CEC pass-through. Plus, it supports Dolby Digital 5.1 and DTS HD audio.
Pushing the technology and design to the limit, the compact design makes the VE811R easy to mount in any location. Engineered for today’s digital trends, the VE811R is ideal for meeting rooms or any setting that requires high-quality HDMI video to be extended for great distances.
Package Contents
1x VE811R HDMI HDBaseT Receiver
1x Power Adapter
1x User Instructions
Video Output
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 3 m |
Video
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
|---|---|
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Colour, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Audio
| Output | 1 x HDMI Type A Female (Black) |
|---|
Connectors
| Unit To Unit | 1 x RJ-45 Female |
|---|---|
| Firmware Upgrade | 1 x Mini Stereo Jack Female (Black) |
| Power | 1 x DC Jack (Black) with locking |
Switches
| Long Reach Mode Switch | 1 x Slide Switch - ON/OFF |
|---|---|
| Power Consumption | DC5V:3.84W:18BTU |
Environmental
| Operating Temperature | 0 - 40°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.17 kg ( 0.37 lb ) |
| Dimensions (L x W x H) with bracket | 8.64 x 7.30 x 2.47 cm (3.4 x 2.87 x 0.97 in.) |
| Dimensions (L x W x H) without bracket | 8.20 x 5.20 x 2.37 cm (3.23 x 2.05 x 0.93 in.) |
You must be logged in to post a review.
VE811R Datasheet PDF
