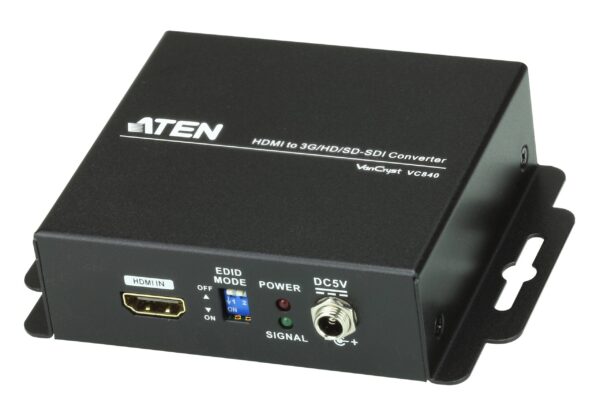

Aten Converter, HDMI to 3G-SDI with Audio – VC840
R7,783.91
• Converts an HDMI input signal to 3G/HD/SD-SDI formats in real-time while avoiding transformation loss for both audio and video signals
• Supports additional analog stereo audio and coaxial digital audio
• Offers 2 low-jitter SDI outputs for dual display
• Selectable EDID settings and EDID learning mode
- Brand :Aten
- SKU :ATEN-VC840
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.
Package Contents
1x VC840 HDMI to 3G/HD/SD-SDI Converter
1x Power Adapter
1x User Instructions
Video Input
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 3m at 1920*1080@60 (4:4:4) |
Video Output
| Interfaces | 2 x BNC (Gold) |
|---|---|
| Impedance | 75 Ω |
Video
| Max. Data Rate | 2.97 Gbps |
|---|---|
| Max. Pixel Clock | 148.5 MHz |
| Supported Resolutions | NTSC@59.96Hz, PAL@50 Hz; 720p@50/59.94/60 Hz; 1080i@50/59.94/60 Hz; 1080p@23.97/24/25/29.97/30/50/59.94/60 Hz |
| Max. Distance | 90m (3G-SDI); 150m (HD-SDI); 300m (SD-SDI) |
Audio
| Output | Analog: 2 x RCA (Red/White) Digital: 1 x RCA (Yellow) |
|---|---|
| SDI Formats | SD-SDI (SMPTE 259M, up to 270 Mbps) HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps) 3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps) |
| EDID Settings | EDID Mode: Learn |
Connectors
| Power | 1 x DC Jack |
|---|---|
| Power Consumption | DC5V:3.225WBTU |
Environmental
| Operating Temperature | 0 - 40 ºC |
|---|---|
| Storage Temperature | 20 - 60 ºC |
| Humidity | 20 - 90% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.29 kg ( 0.64 lb ) |
| Dimensions (L x W x H) | 12.20 x 10.70 x 3.04 cm (4.8 x 4.21 x 1.2 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
You must be logged in to post a review.
VC840 Datasheet PDF
