AV Signal Distribution

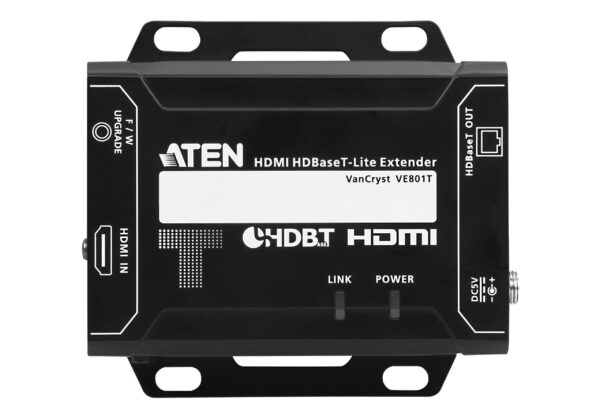

Aten Extender, HDMI, HDBaseT – Lite, Transmitter – VE801T
R2,262.55
• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
• HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Brand :Aten
- SKU :ATEN-VE801T
- Category :AV Signal Distribution
- Availability :
In Stock
14 in stock
Description
The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centres or any installation that requires superior HDMI video quality to be extended at great distances.
* Compatible HDBaseT Receiver Units: VE801R
Package Contents
- 1x VE801T HDMI HDBaseT-Lite Extender
- 1x Power Adapter
- 1x User Instructions
Video Input
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100Ω |
| Max. Distance | 3 m |
Video
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
|---|---|
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Audio
| Input | 1 x HDMI Type A Female (Black) |
|---|
Connectors
| Power | 1 x DC Jack (Black) with locking |
|---|---|
| Unit To Unit | 1 x RJ-45 Female |
| Power Consumption | DC5V:1.86W:9BTU |
Environmental
| Operating Temperature | 0 - 50°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0% - 80% RH, Non-condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.24 kg ( 0.53 lb ) |
| Dimensions (L x W x H) with bracket | 9.86 x 8.70 x 3.00 cm (3.88 x 3.43 x 1.18 in.) |
| Dimensions (L x W x H) without bracket | 9.42 x 6.60 x 2.90 cm (3.71 x 2.6 x 1.14 in.) |
