AV Signal Distribution

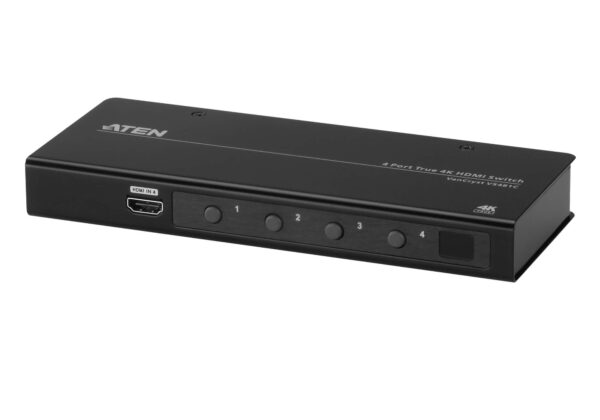

Aten Switch, True 4K, HDMI, 4 Port – VS481C
R3,088.63
• Allows up to 4 HDMI sources to be connected to one HDMI display
• HDMI 2.0(3D, Deep Colour, 4K); HDCP 2.2 compliant
• Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)
• Built-in bi-directional RS-232 serial port for high-end system control
- Brand :Aten
- SKU :ATEN-VS481C
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Colour up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.
Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theatre, meeting rooms, trade shows, and shopping centres.
Switches
| DIP | Auto Switch ON/OFF |
|---|
Video Input
| Interfaces | 4 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Video Output
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Video
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
|---|---|
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Colour, 4K) HDCP 2.2 Consumer Electronics Control (CEC) |
| Max. Resolution | 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Control
| RS-232 | Connector：1 x DB-9 Female (Black) Baud Rate：19200 / Data Bits：8 / Stop Bits：1 / Parity：NO / Flow Control：NO |
|---|---|
| IR | 1 x Mini Stereo Jack Female (Black) 1 x IR Receiver |
Connectors
| Power | 1 x DC Jack (with locking) |
|---|---|
| Power Consumption | DC5V:0.924W:20BTU |
Environmental
| Operating Temperature | 0-40 °C |
|---|---|
| Storage Temperature | 20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.00 x 8.21 x 2.50 cm (7.87 x 3.23 x 0.98 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
