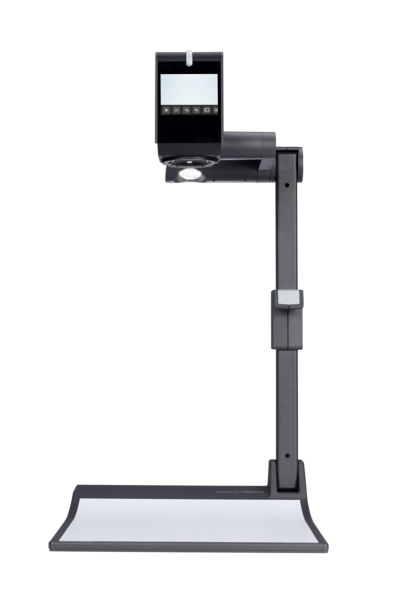

Wolfvision Visualiser VZ-8, UHD, HDMI/HDBaseT OUT – VZ8UHVERB
R163,280.08
Next generation 4K UHD Visualizer imaging
• The VZ-8.UHD is a native 4K UHD Visualizer system. It combines crystal clear on-screen images, a touchscreen control and preview monitor, plus 4K recording and streaming functionality, together with newly designed optical and electronic systems.
• Also now available with an optional built-in HDBaseT module, enabling delivery of uncompressed 4K60 content over longer distances without compromising image quality.
• With the VZ-8.UHD, we set the standard worldwide for innovative, user-friendly, networked AV ready, high performance Visualizer systems.
• Native 4K UHD Visualizer system
• Touchscreen control & preview monitor
• 4K recording & streaming
• Remote management & updating
• Optional dry-erase working surface
- Brand :Wolfvision
- SKU :WOLFVISION-VZ8UHVERB
- Category :Document Cameras
- Availability :Out of Stock
Out of stock
Description
• Now Zoom Certified
The VZ-8.UHD is a Zoom Certified Document Camera, highlighting its compatibility with Zoom Rooms, Zoom Workplace, and Zoom for Government. With the one-touch sharing function, users can start streaming live content such as documents, handwritten notes, or physical objects directly in a Zoom meeting – either from the Visualizer itself or via the Zoom interface.
• High performance 4K imaging
Ultra-high definition camera with 4K UHD output resolution for presentation of content materials in unrivalled image quality.
• Powerful zoom range
64x zoom for incredible flexibility when displaying content on-screen. Images are always crystal clear, even when zooming in closely on materials
• 4K recording & streaming
Simultaneous 2160p / 30fps recording and streaming. Use this networked AV-ready Visualizer for capture and distribution of content materials in outstanding quality.
• Focus on the content
High speed continuous autofocus, manual focus, plus an easy-to-use 9-point touch and focus mode, ensure crisp presentation of all content materials.

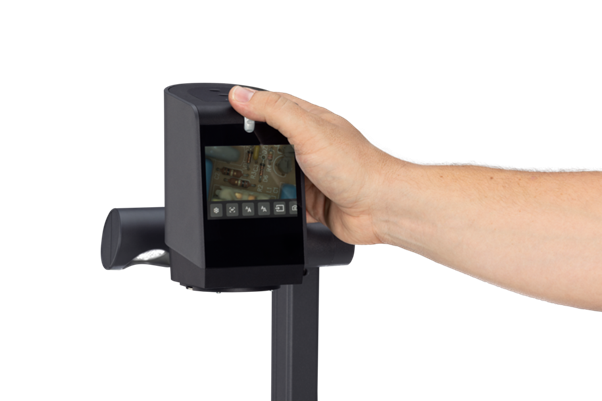

• Touchscreen preview monitor
LCD touchscreen monitor for easy positioning of objects on the working surface, plus swipe-through advanced settings menu.
• Imaging around the room
90° rotating camera head with shake-free mount for picking up images and video from outside of the working surface.
| System | Desktop Visualizer |
|---|---|
| Availability | Worldwide |
| Camera | CMOS 1/1.8" |
| Pictures per second | 60 frames (in all resolutions) |
| Native pixels of camera sensor | 3840 x 2160 (8,294,400) |
| Native signal output | 2160p UHD 4.4.4 (3840x2160) |
| Converted Widescreen output signals (16:9 and 16:10) | 1080p FHD (1920x1080), 720p HD (1280x720) |
| Resolution (measured) | 1,600 lines |
| Lens | f = 6.8 - 110 mm |
| Zoom range | 64 x zoom (16x optical, 4x digital), multiple-speed zoom wheel |
| Max object height on working surface | 130 mm (5.1“) in tele position 370 mm (14.6“) in wide position |
| Max. pick-up area on working surface | Width: 518 mm (20.4"), Length: 283 mm (11.1") |
| Min. pick-up area on working surface in full resolution, with optical zoom (Width x Length) | 16:9 (29.5 x 16.6 mm / 1.2“ x 0.7“) |
| Min. pick-up area on working surface with digital zoom (Width x Length) | 16:9 (7.4 x 4.2 mm / 0.3“ x 0.2“) |
| Max. pick-up area outside of working surface | Unlimited |
| Depth of focus on small object (42 x 33 mm) | 3 mm (0.1“) |
| Depth of focus on large object (360 x 270 mm) | 120 mm (4.7“) |
| Brightness control | Automatic and manual |
| White balance adjustment | Automatic and manual |
| Adjustable colour settings | Yes |
| Focus modes | High speed continuous autofocus, 9-point touch & focus, manual focus |
| Built-in LCD preview monitor | Yes, touchscreen LCD control & preview monitor (3.5“ 320x240 px, RGB) |
| Live to Freeze comparison | Side by side, 2x 1080pHD on a 4K screen |
| On-screen menu and on-screen help | On-screen menu, touchscreen with swipe-through menu & password-protected advanced functions |
| Rotating camera head for recordings outside of the working surface | 90° towards audience |
| Light source | Maintenance-free high-brightness LED light system (high light output, low power consumption), lamp lifetime: 30,000 hours |
| Reflection free working area | Yes |
| Free firmware updates | Yes, via LAN and USB |
| vSolution Link Pro software for remote administration & firmware updates | Yes, included (for Windows 10 & 11, Windows Server, Windows Web Server, macOS) |
| Intelligent folding system | Articulated arm, with 2-step setup |
| User programmable presets | 3 |
| Seamless cross fading between image sources | Yes |
| Image memory | 8GB + additional storage on USB stick or external hard drive |

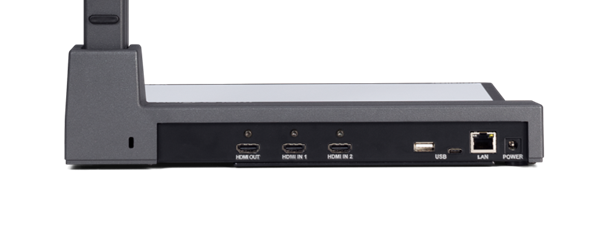

| External computer input with digital scaler | Yes, HDMI x2, up to 4K UHD 60fps pass through |
| UVC Driver for Windows, Linux and macOS, PTP (Picture Transfer Protocol) | Yes |
| HDMI output | Yes |
| HDBaseT 2.0 | Optional x1 (Standard HDMI output can be used additionally, but only in the same resolution as HDBaseT output) |
| USB ports | USB 3.0 device port, 2x USB 2.0 host ports |
| Ethernet/LAN port | Yes |
| LAN web interface | Yes |
| LAN streaming modes (multicast and unicast): | RTP H.265 + audio, RTP H.264 + audio, RTP MJPG + audio |
| Advanced controlling with professional protocols | Yes, via LAN and USB |
| Additional security functionality (disabling snapshot, video recording, and freeze functionality) | Yes |
| Video recording | Yes, 2160p UHD, up to 30 fps |
| Audio | Yes, via HDMI In and HDMI Out, UAC support (USB microphone) |
| Dimensions in operation (L x W x H) | 392 mm x 312 mm x 613 mm (15.4“ x 12.3“ x 24.1“) |
| Dimensions folded (L x W x H) | 392 mm x 312 mm x 140 mm (18.4“ x 12.3“ x 5.51“) |
| Weight | 4.95Kg (10.9lbs) |
| Operating temperature / relative humidity | 0°-40°C (32°-104°F) / 40-60% |
| Remote control | Optional (supplied free of charge on request) |
| Anti-theft devices | T-Lock (Kensington® Lock) and table lock bolt |
| Power | External desktop power pack: multi range 100-240V, 40W (Ver. A), 45W (Ver. B),(length of power cord: 1,8 m) |
| Optional accessories | Dry-erase working surface |
| Included accessories | User manual, Power supply with cord 1.8m (5'11") |
| Made in | EU / Austria |
