AV Signal Distribution

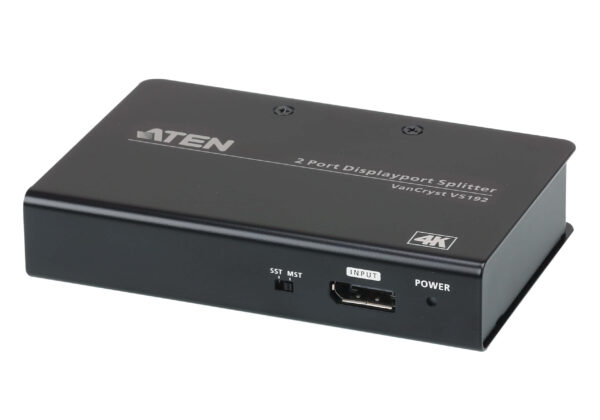

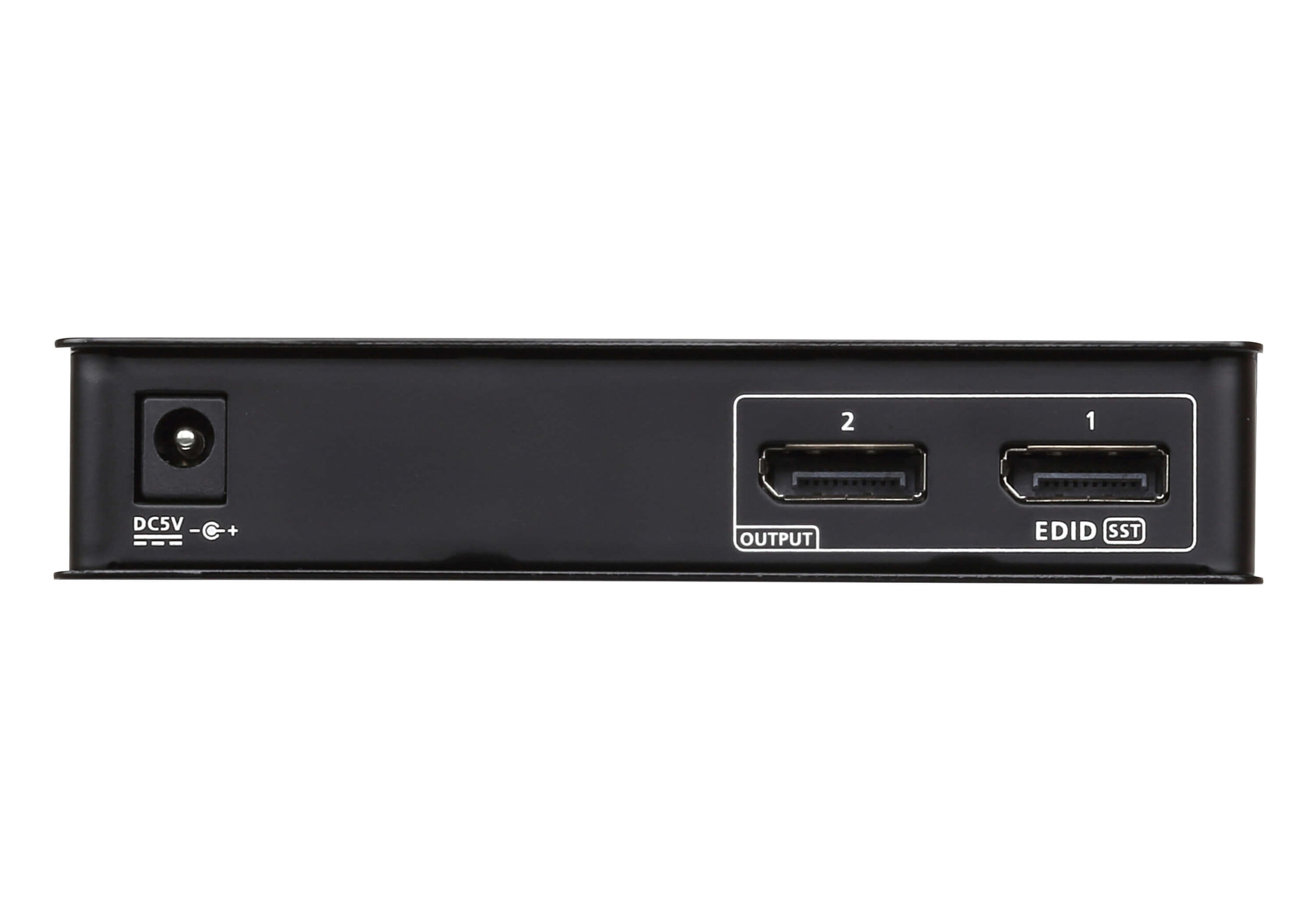

Aten Splitter, DisplayPort, 2 Port – VS192
R3,329.81
• Connects 1 DisplayPort source to 2 DisplayPort monitors
• Supports DisplayPort 1.2a; HDCP 1.3
• Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
• Supports MST/ Extend Mode and SST/ Split Mode*MST/ Extend Mode: Extend a video source across 2 displays with a maximum resolution of 4K.SST/ Split Mode: Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
- Brand :Aten
- SKU :ATEN-VS192
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The VS192 2-Port 4K Display Port Splitter is the perfect solution for anyone who needs to send one source of Display Port high definition video to 2 Display Port displays. The VS192, not only splits but also expands Display Port audio/video signals on 2 Display Port monitors, is ideal for any multi-display application.
The VS192 is compatible with Display Port 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all Display Port displays in corporate, educational, and commercial settings.
Package Contents
- 1x VS192 2-port True 4K Display Port Splitter
- 1x Power Adapter
- 1x User Instructions
Video Output
| Interfaces | 2 x DisplayPort Female (Black) |
|---|---|
| Max. Distance | 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz) *tested with 2L-7D04DP |
Video Input
| Interfaces | 1 x DisplayPort Female (Black) |
|---|---|
| Max. Distance | 4.6m (4096 x 2160 / 3840 x 2160 @ 60Hz) *tested with 2L-7D04DP |
Video
| Compliance | DP 1.2a; HDCP 1.3 |
|---|---|
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz |
| Max. Data Rate | 21.6 Gbps (5.4 Gbps per lane) |
Connectors
| Power | 1 x DC Jack |
|---|---|
| Power Consumption | DC5V:1.185W:6BTU |
Environmental
| Operating Temperature | 0-40 °C |
|---|---|
| Storage Temperature | 20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.30 kg ( 0.66 lb ) |
| Dimensions (L x W x H) | 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
You must be logged in to post a review.
VS192 Datasheet PDF
In Stock
Reviews
There are no reviews yet.
