AV Signal Distribution

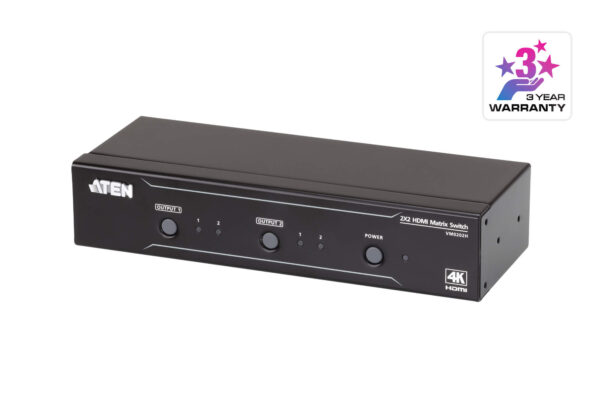

Aten Matrix Switch, HDMI, 2 Port – VM0202H
R6,985.41
• The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding.
• The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio.
• Supporting video resolutions up to 4096 x 2160 @ 60Hz(4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.
• The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides high-performance routing of 2 HDMI video sources such as high definition Blu-ray players, home theatre PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays.
• In addition, the built-in audio de-embedder allows HDMI audio extraction for independent analogue audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.
- Brand :Aten
- SKU :ATEN-VM0202H
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz(4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications. The VM0202HB matrix switch delivers superior video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), and also provides high-performance routing of 2 HDMI video sources such as high definition Blu-ray players, home theatre PCs, camcorders, DVD players, satellite boxes and stand-alone streaming media players to any 2 HDMI displays. In addition, the built-in audio de-embedder allows HDMI audio extraction for independent analogue audio output with ease. For efficient control and management, VM0202HB’s remote control and front-panel pushbuttons provide a convenient way to cycle through HDMI video and audio sources with clear LED indication of the selected source.
Features
- Connects 2 HDMI sources to any 2 HDMI displays
- Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
- Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR
- Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
- Supports Dolby True HD and DTS HD Master Audio
- Auto switching – automatically detects and switches to a new source once connected (Default: off)

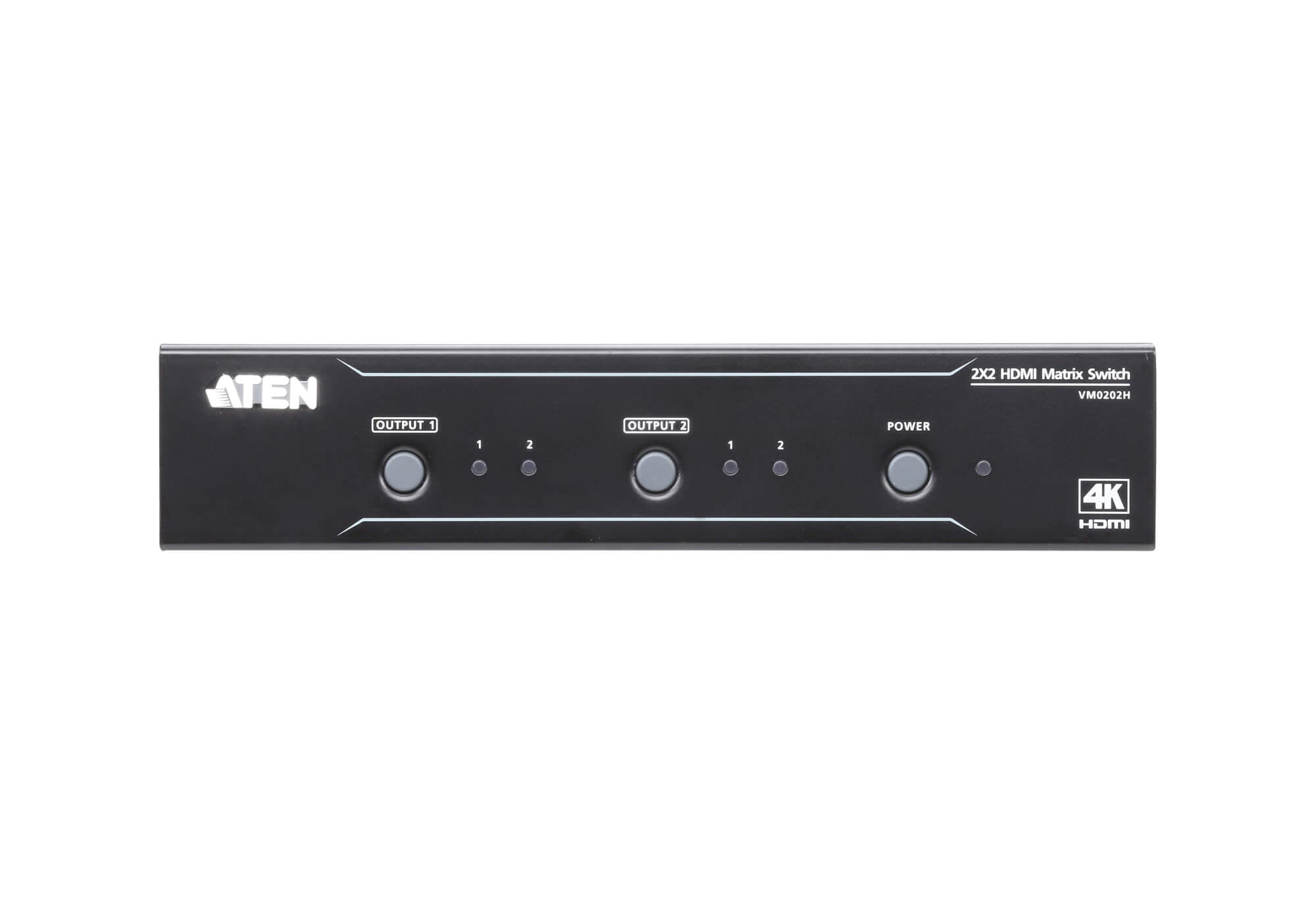

- Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
- Long-distance transmission up to 5 meters
- HDMI (3D, 4K, Deep Colour); HDCP 2.2 Compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
- Supports ATEN’s Lock Pro™ HDMI cable lock for secure HDMI cable connections
- All metal casing
- Firmware upgradable
- Rack mountable
| Video Input | Interfaces 2 x HDMI Type A Female (Black) |
|---|---|
| Video Output | Interfaces 2 x HDMI Type A Female (Black) |
| Video | Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane) |
| Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4 | 4:4) |
| Audio | Output |
| Control | USB 1 x Micro USB; F/W upgrade |
| Connector | 1 x DB-9 Female (Black) |
| Baud rate and protocol | Baud Rate: 19200, |
| Data Bits | 8, Stop Bits:1, Parity: No, Flow Control: No |
EDID Settings
| EDID Mode | Default / Port1 / Remix |
|---|---|
| Connectors | Power 1 x DC Jack (Black) |
Power Consumption
| DC5V | 2.47W:11BTU |
|---|---|
| Environmental | Operating Temperature 0 - 40° C |
| Physical Properties | Housing Metal |
You must be logged in to post a review.
VM0202H Datasheet PDF
