AV Signal Distribution

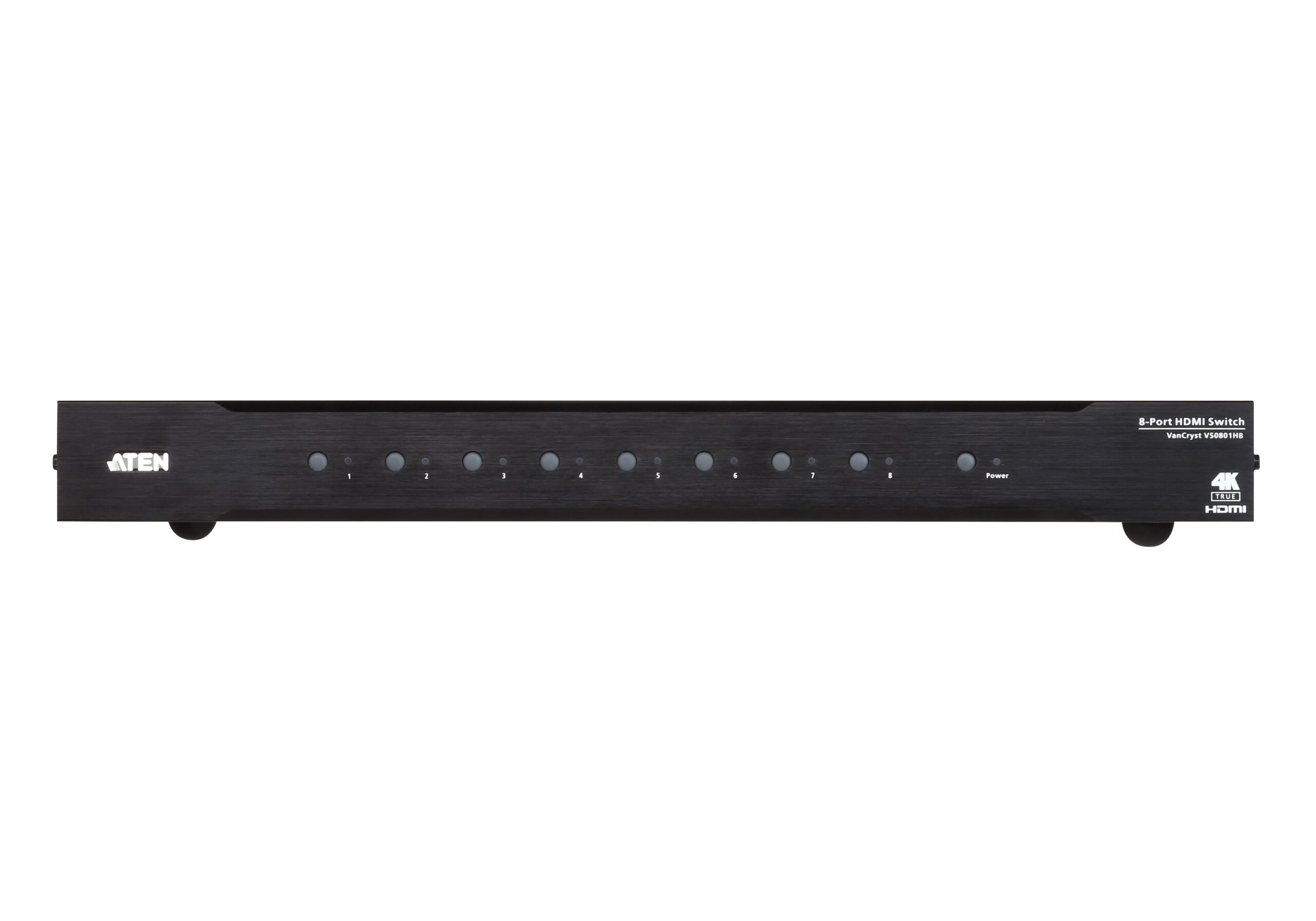

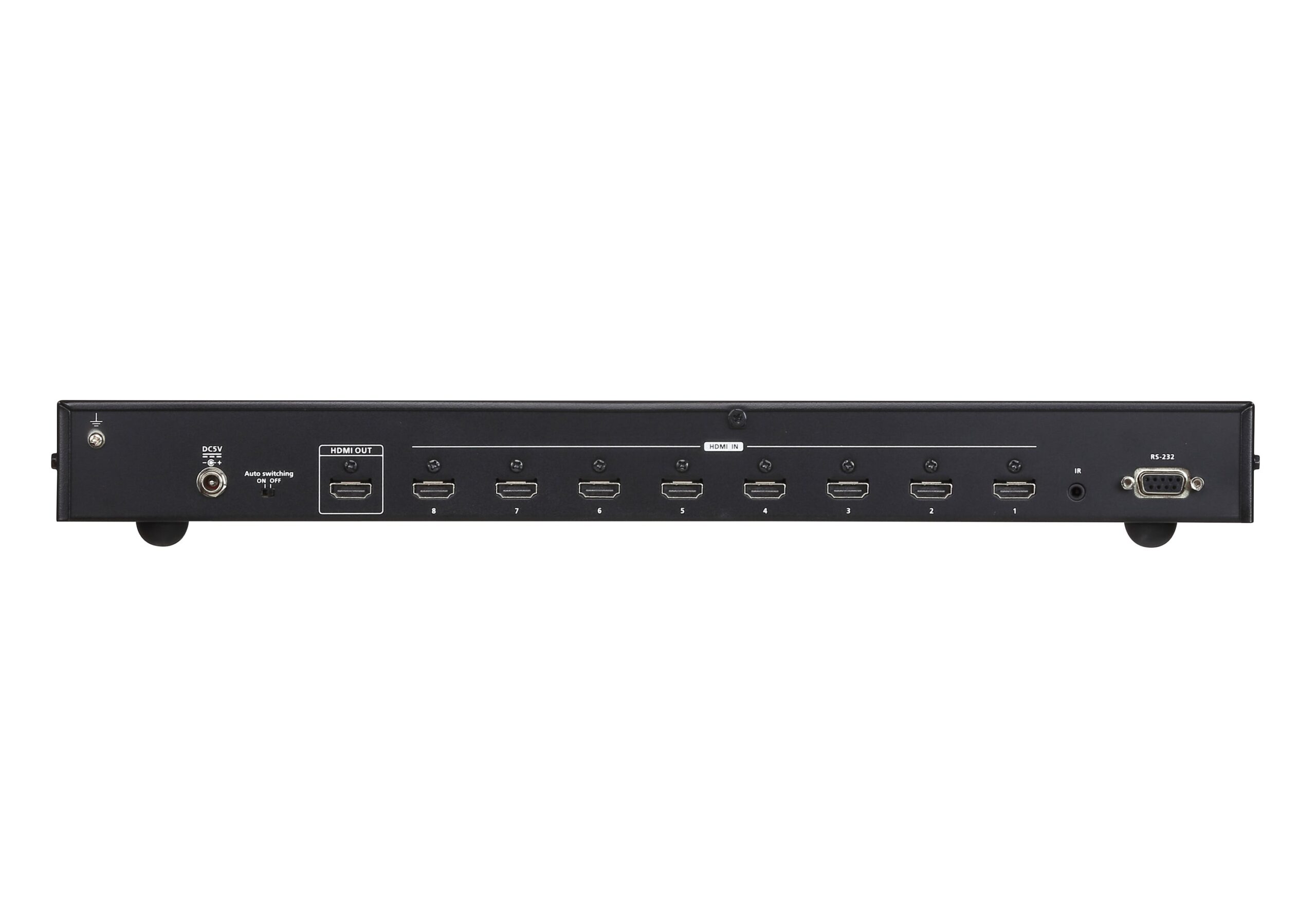

Aten Switch, HDMI, 8 Port – VS0801HB
R8,652.54
• Allows up to 8 HDMI sources to be connected to one HDMI display
• Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
• HDMI (3D, Deep Colour, 4K); HDCP 2.2 compliant
• Built-in bi-directional RS-232 serial port for high-end system control
- Brand :Aten
- SKU :ATEN-VS0801HB
- Category :AV Signal Distribution
- Availability :
In Stock
1 in stock
Description
The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Colour up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theatre, meeting rooms, trade shows, and shopping centres.
Package Contents
- 1x VS0801HB 8-port True 4K HDMI Switch
- 1x IR Remote Control Unit
- 1x IR Receiver Cable
- 1x Power Adapter
- 1x Rack Mounting Kit
- 1x User Instructions
Switches
| DIP | 1 x Auto Switch ON / OFF |
|---|
Video Input
| Interfaces | 8 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Video Output
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Video
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
|---|---|
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Colour) HDCP 2.2 Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Max. Distance | 5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
Control
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
|---|---|
| IR | 1 x Mini Stereo Jack Female (Black) |
Connectors
| Power | 1 x DC Jack (with locking) |
|---|---|
| Power Consumption | DC5.3V:3.73W:17BTU |
Environmental
| Operating Temperature | 0 - 40°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 2.14 kg ( 4.71 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.83 x 4.40 cm (17.21 x 6.23 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
