AV Signal Distribution

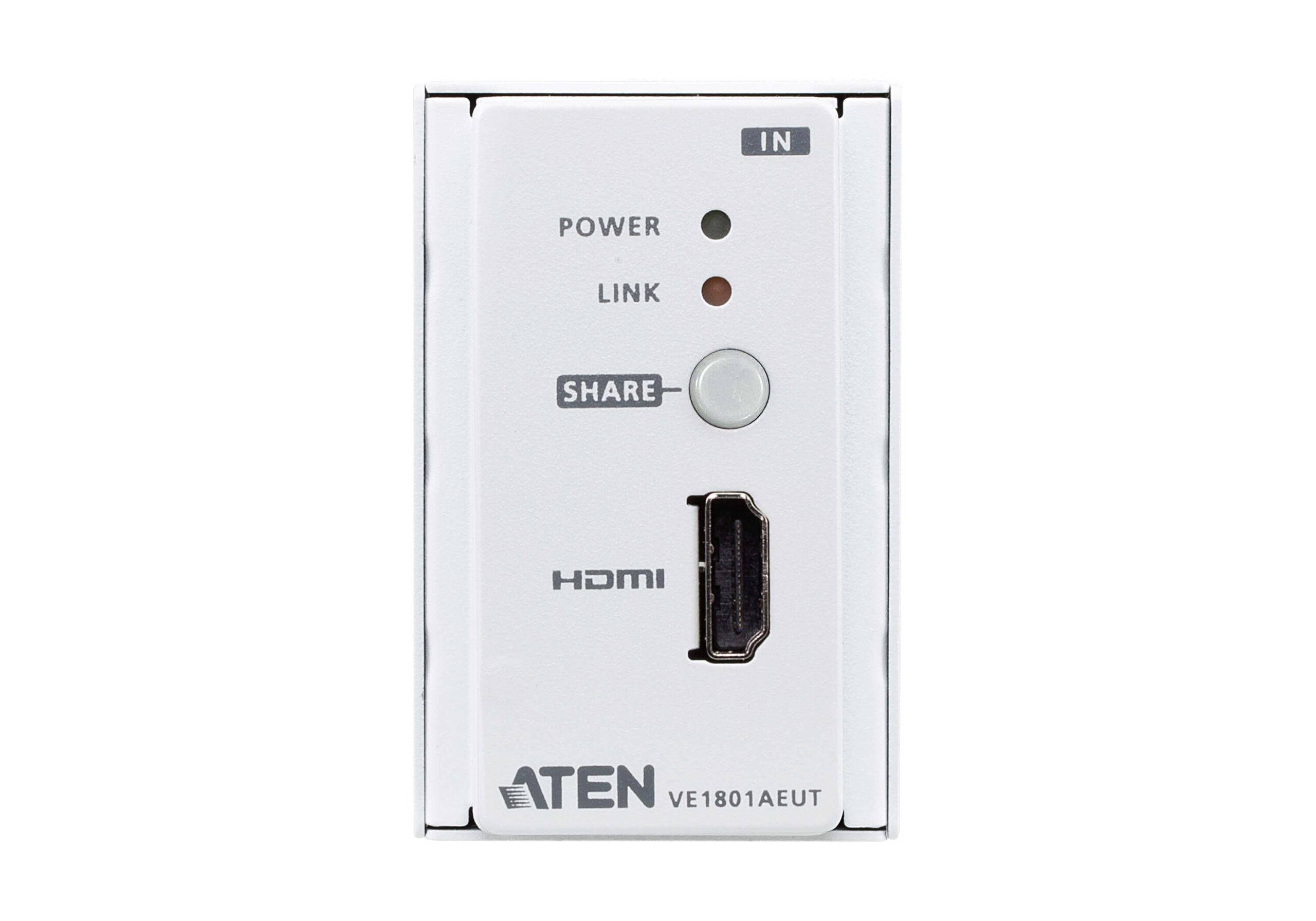

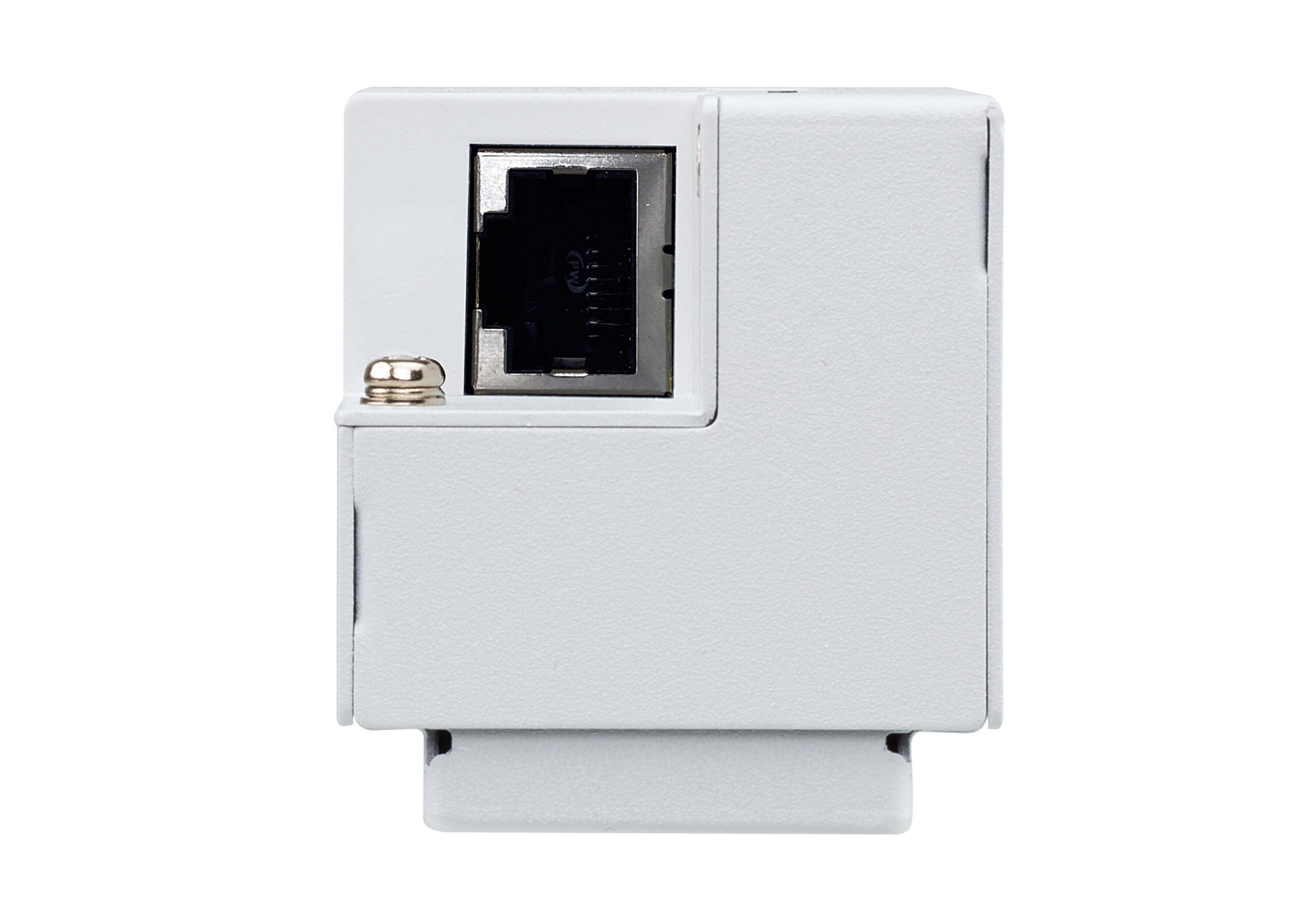

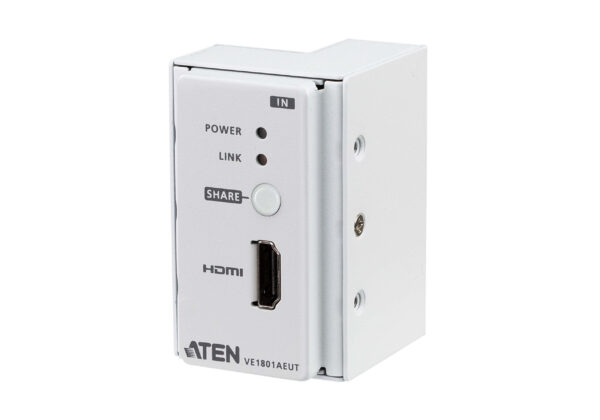

Aten Extender, HDMI, HDBaseT – Lite, Transmitter with EU Wall Plate – VE1801AEUT
R6,174.32
• Extends HDMI signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
• 4K up to 40 m
• 1080p up to 70 m
• Built-in PoH (Power over HDBaseT) function – the VE1801AEUT receives power supply from the HDBaseT output port

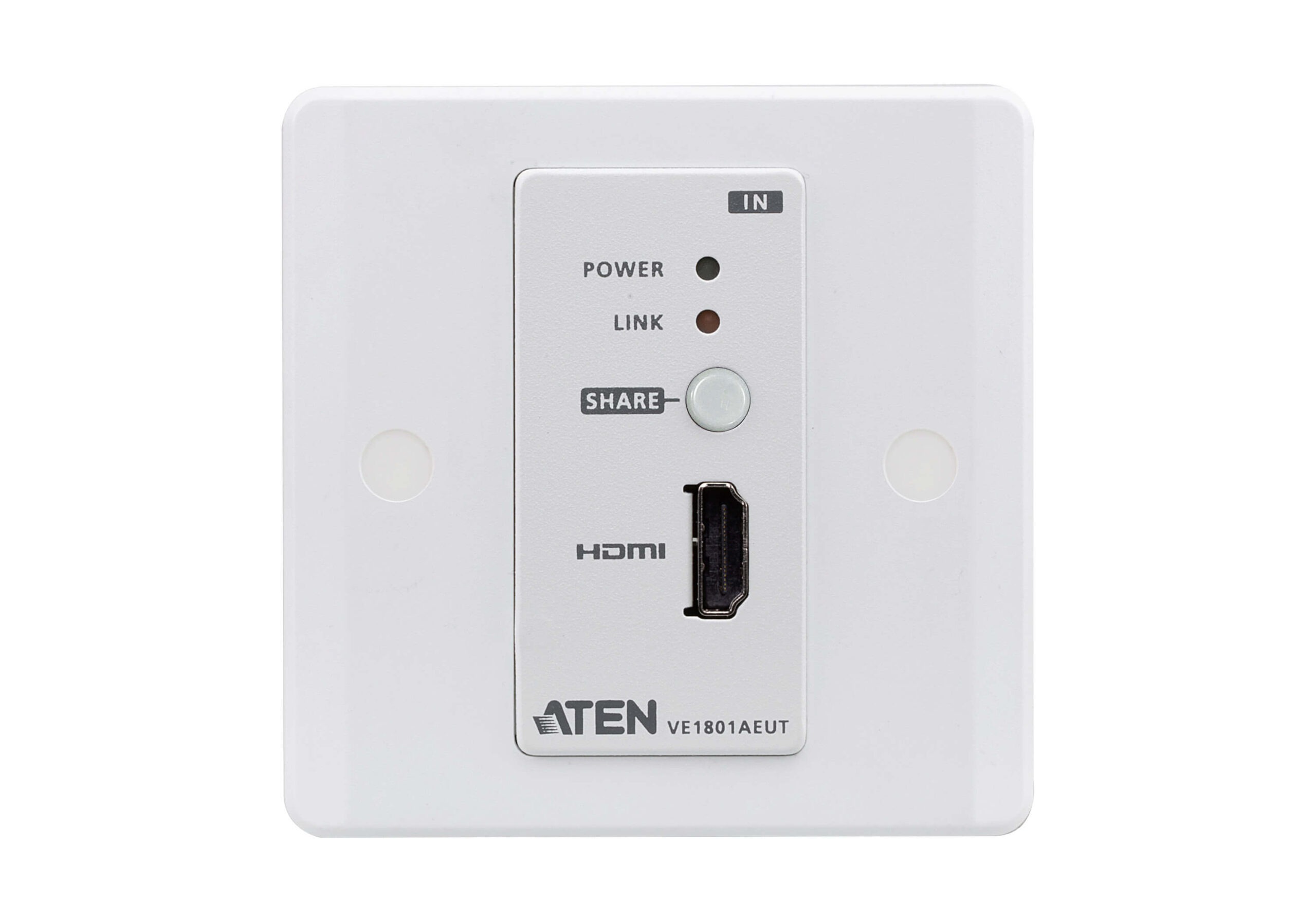

• Designed to mount in a 1-gang junction box with EU wall plate
• Share function – the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421
- Brand :Aten
- SKU :ATEN-VE1801AEUT
- Category :AV Signal Distribution
- Availability :
In Stock
4 in stock
Description
The ATEN VE1801AEUT HDMI HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize HDMI signal transmission with support of 3D, Deep color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.
The VE1801AEUT can be easily mounted in a 1-gang junction box with EU wall plate, concealing bulky cable setups and presenting needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1801AEUT receives power supply from a connected PoH PSE supported receiver and streamlines complex power line deployment.
Expanding on previous models by the share function, the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1801AEUT is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.
Package Contents
- 1x VE1801AEUT HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH
- 1x 5-pin terminal block
- 1x rubber pad set (4 pcs)
- 1x faceplate
- 2x pan head screws
- 4x PF screws
- 1x power adapter
- 1x user instructions
Video Input
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100Ω |
| Max. Distance | 3 m |
Video
| Max. Data Rate | 10.2Gbps (3.4Gbps per lane) |
|---|---|
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Audio
| Input | 1 x HDMI Type A Female (Black) |
|---|

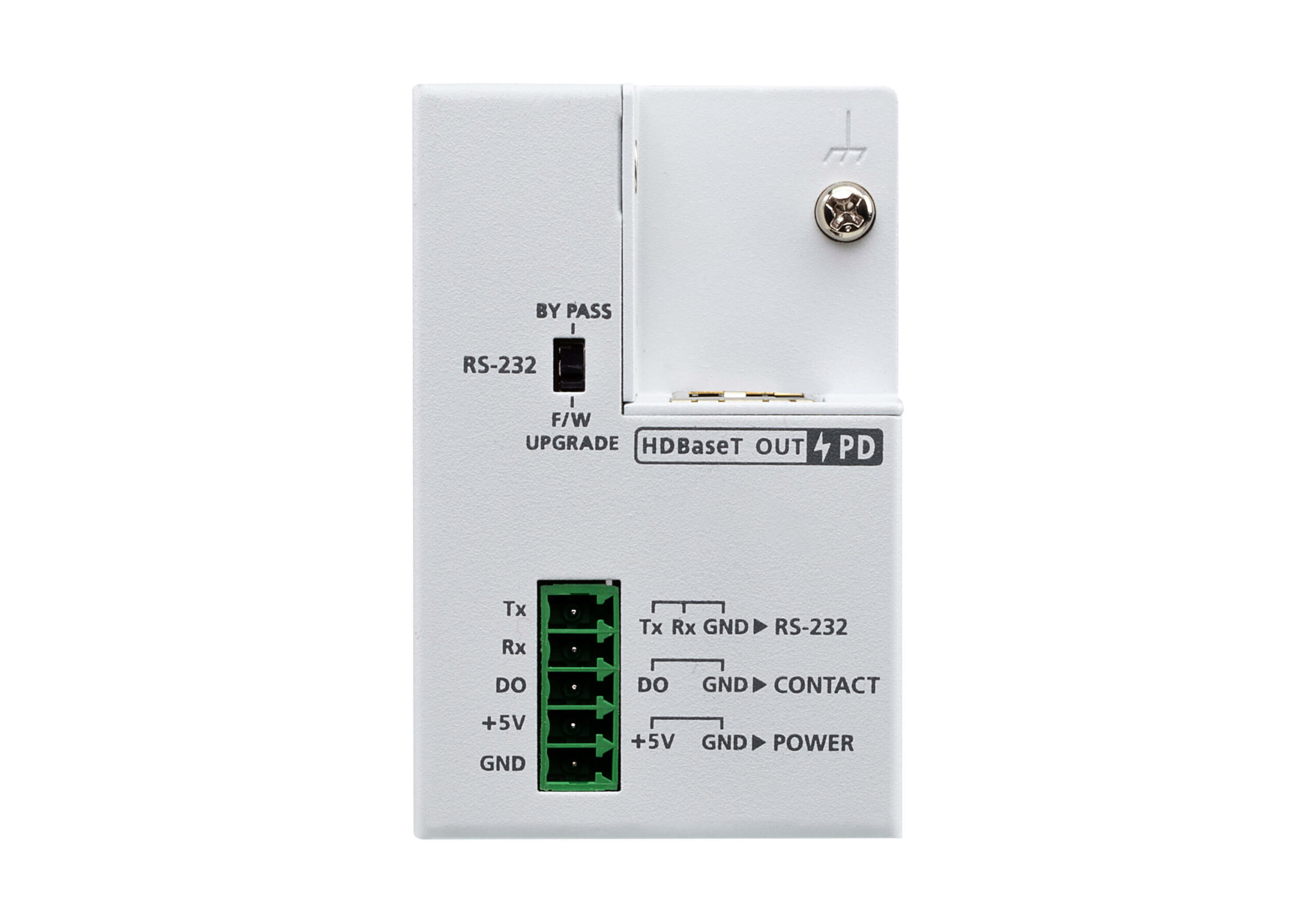

Control
| RS-232 Channel | 1 x Terminal Block (3 pole, TX/RX/GND, Green) |
|---|---|
| Contact Out | 1 x Terminal Block (2 pole, DO/GND, Green) |
Connectors
| Unit To Unit | 1 x RJ-45 Female |
|---|---|
| Power | 1 x Terminal Block (2 pole, +5V/GND, Green) or 1 x RJ-45 Female (POH) |
| Power Consumption | DC5V:3.26W:15BTU POH:4W:19BTU |
Environmental
| Operating Temperature | 0 - 40°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0% - 80% RH, Non-condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.20 kg ( 0.44 lb ) |
| Dimensions (L x W x H) | 6.86 x 4.44 x 5.00 cm (2.7 x 1.75 x 1.97 in.) |
| Faceplate Dimensions (L x W x H) | 8.60 x 8.60 x 1.60 cm (3.39 x 3.39 x 0.63 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
