AV Signal Distribution

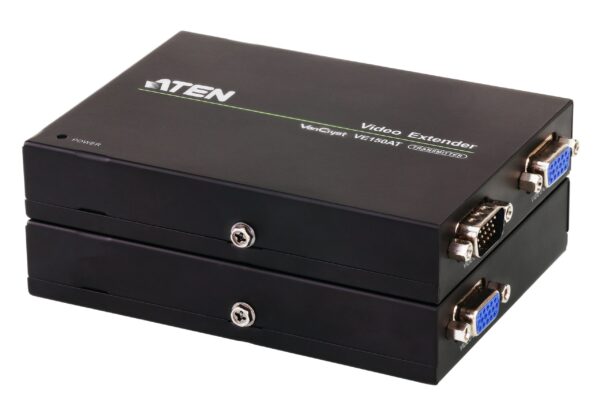

Aten Extender, VGA, CAT5, Reveiver – VE300R
R2,007.47
• Long Distance Transmission up to 300 m
• Superior video quality?1920x1200@60Hz (30 m), 1600x1200@60Hz (150 m ), 1280x1024@60Hz (200 m)
• Automatic and adjustable gain control – adjust signal strength to compensate for distance
• Built-in 8KV/15KV ESD protection
- Brand :Aten
- SKU :ATEN-VE300R
- Category :AV Signal Distribution
- Availability :
In Stock
1 in stock
Description
The VE300R A/V Over Cat 5 Extender system is designed to integrate seamlessly into installations with the ATEN VM0808T Cat 5 A/V Matrix Switch. With ATEN’s exclusive Deskew technology, the VE300 allows you to extend the distance between the A/V source and the display monitor by up to 500 feet (150 m) with a resolution of 1600×1200 (for the VE300R), or up to 1000 feet (300 m) with a resolution of 1280×1024 (for the VE300RQ).

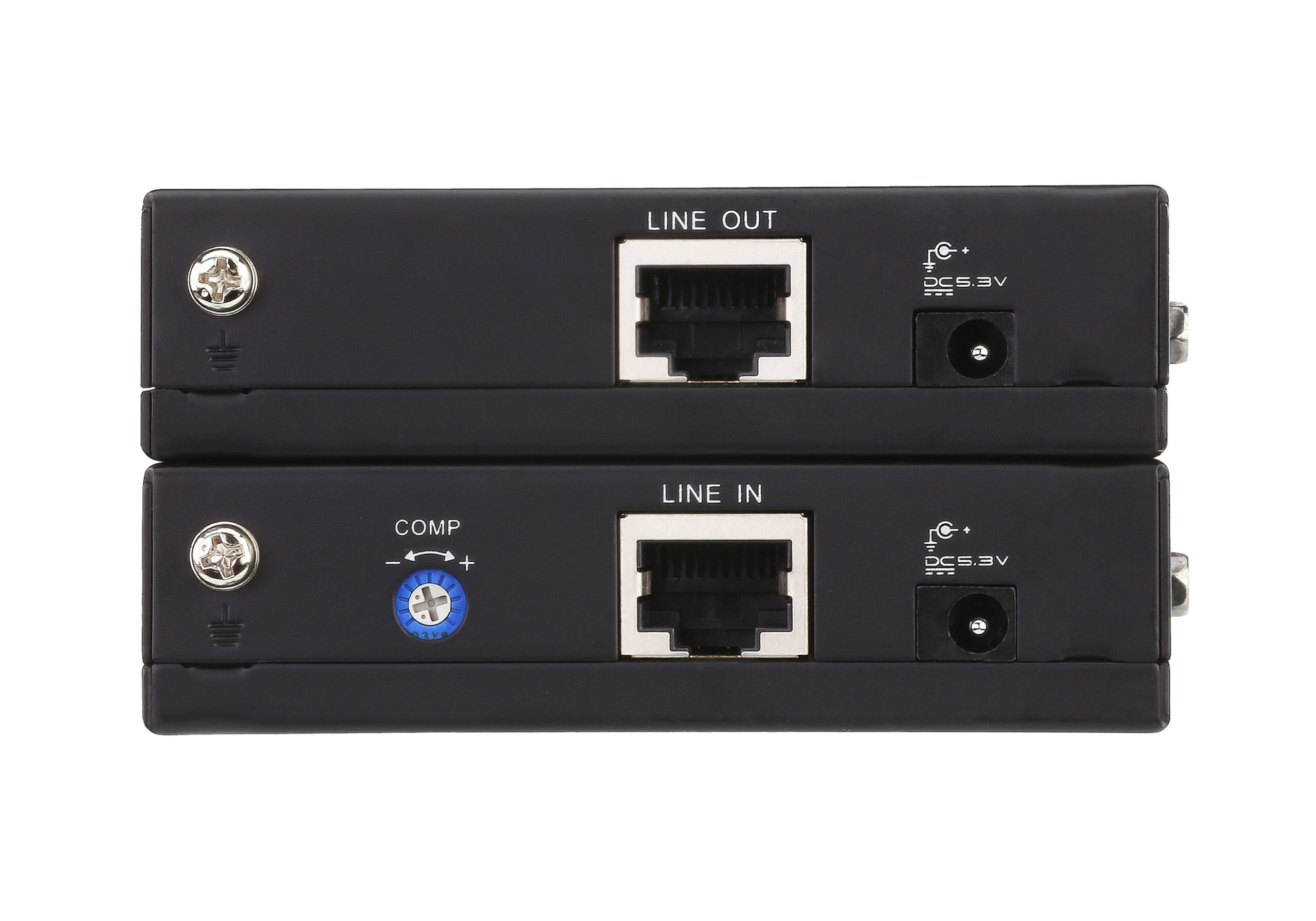

It is able to accomplish this by means of a local transmitting unit (the VE300T), connected to the remote receiving unit (either the VE300R or VE300RQ), using Cat 5e twisted pair cable. Because it allows access to the audio/video source over large distances, the VE300 is ideal for installations such as construction sites, factory floors, control and security centres, where the system equipment can reside in a safe and secure location, while the display is conveniently located in public view.
To provide optimum video quality over large distances, the VE300RQ supports RGB delay tuner functionality – allowing you to manually synchronize the RGB signals. It also provides a line synchronization function that corrects colour phase and timing errors that occur over long distance transmissions, and stores the settings.
- Uses Cat 5e cable to connect the Transmitter and Receiver
- Extends A/V source in VM0808T installations
- Supports one local and one remote displays
- Superior RGB deskew function (VE300RQ)– automatically synchronizes the time delay of RGB signals to compensate for distance
- Long Distance Transmission up to 1000 feet (300 m)
- Superior video quality
- ‧ VE300R: 1920×1200@60Hz 100 feet (30 m), 1600×1200@60Hz 500 feet (150 m ), 1280×1024@60Hz 650 feet (200 m)
- Automatic and adjustable gain control – adjust signal strength to compensate for distance
- Supports wide screen
- Rack-mountable
- Built-in 8KV/15KV ESD protection

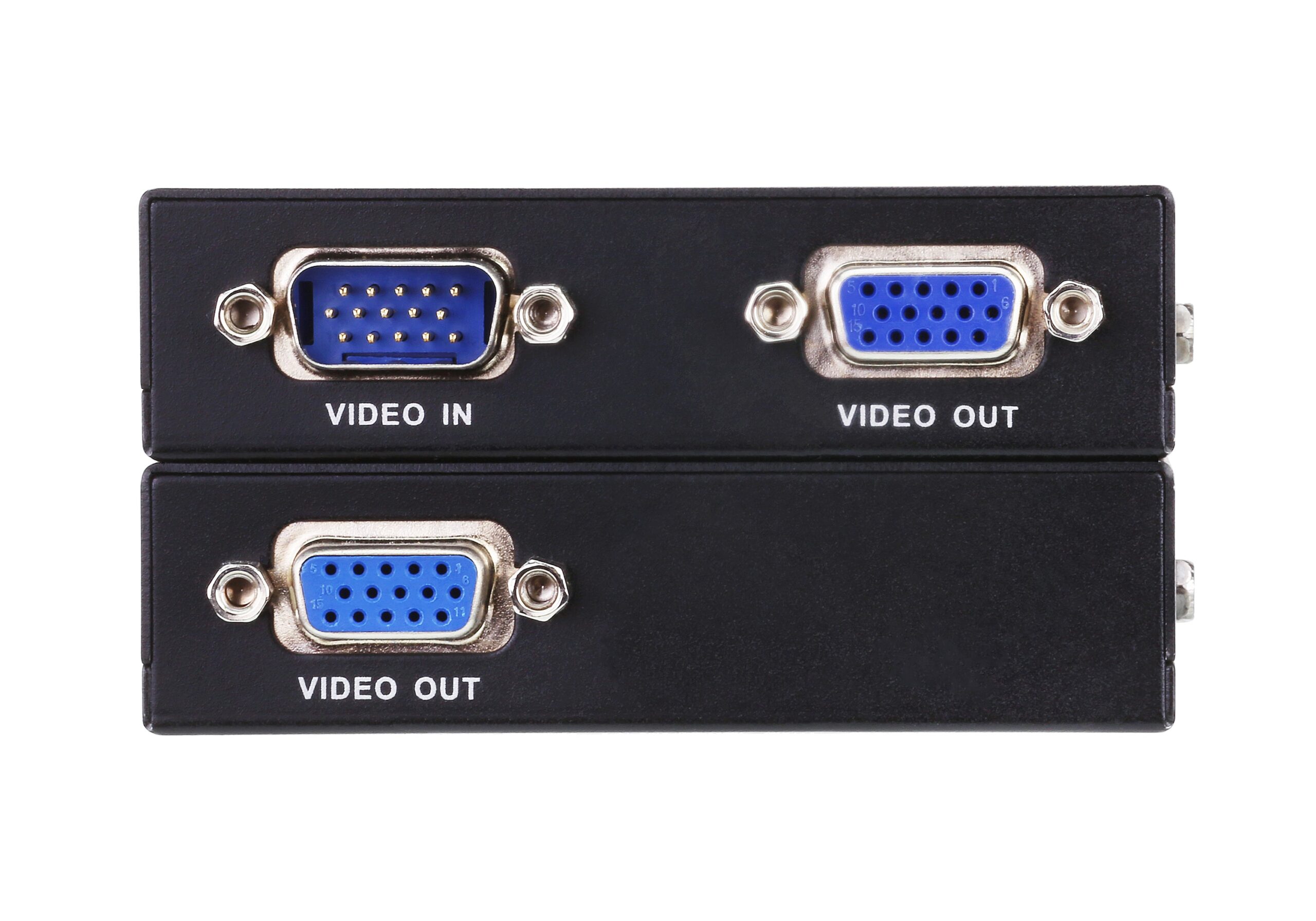

Video Output
| Interfaces | 1 x HDB-15 Female (Blue) |
|---|---|
| Impedance | 75 Ω |
Video
| Max. Bandwidth | 300 MHz |
|---|---|
| Max. Resolutions / Distance | 1920 x 1200@30m; 1280 x 1024@200m |
Audio Outputs
| Interfaces | Stereo: 1 x Mini Stereo Jack Female (Green) |
|---|
Connectors
| Power | 1 x DC Jack (Black) |
|---|---|
| Power Consumption | DC5.3V:7.27W:34BTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
Environmental
| Operating Temperature | 0-50°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.20 x 2.50 cm (7.95 x 3.23 x 0.98 in.) |
| Carton Lot | 5 pcs |
You must be logged in to post a review.
VE300R Datasheet PDF
