Cables

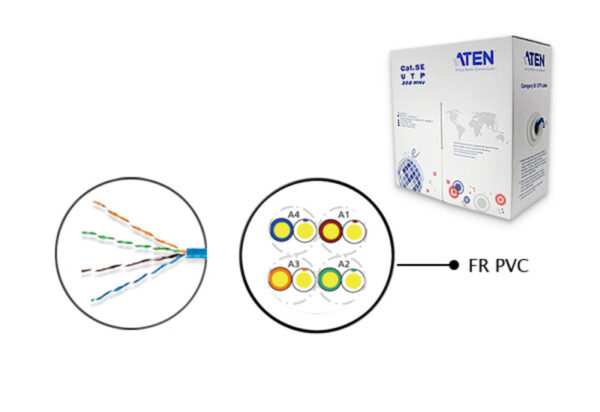

Aten Cat Cable, 305.0m, Low Skew Cat5e – 2L2801
R5,716.59
• Contains 305 m/1000 ft. of low skew cable
• 350 MHz bandwidth
• Delay Skew: 1 ~ 350 MHz 20nS/100m Max.
• Compatible with ATEN analog Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches
- Brand :Aten
- SKU :ATEN-2L2801
- Category :Cables
- Availability :Out of Stock
Out of stock
Description

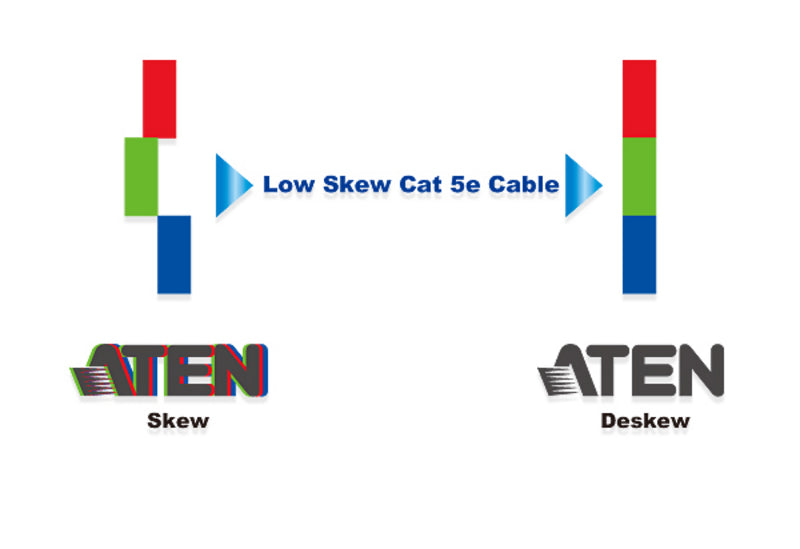

What is skew??
Analog video presents a high quality image when the computer is directly connected to the monitor by short cables. However, in today’s data centres, labs, stores, as well as in digital signage installations, video cables may be long, bulky, and expensive. To overcome these practical video cable length limits, KVM switches—in addition to both KVM extenders and VGA-only extenders—are used that send video through Cat 5e cables. “Skew” is the colour phase and time errors that occur when R/G/B video signals are sent long distance over Cat 5e cables, and this can result in smeared, dull, colour-fringed images that become visibly worse the longer the cables.
Why you need Low Skew Cat 5e Cable?
To remedy this skew distortion, ATEN has developed the Low skew Cat 5e cable 2L-2801. This 305 m/ 1000 ft., high performance Cat 5e cable is suitable for the audio and video transmission of a wide range of video and KVM Extenders. This low skew cable is specifically designed for RGB video applications such as digital signage, and supports video transmissions to longer distances than traditional twisted pair Cat 5e cable does. To eliminate blur and bleeding images and to ensure the clarity of your video transmissions in all video-related applications, use 2L-2801 Low Skew Cat 5e Cable.
| Item | 24AWG × 4p |
|---|---|
| Cable Length | 305 m/ 1000 ft. |
| Conductor Resistance | 9.38 Ohm/100m/20°C Max. |
| Mutual Capacitance | 56 Pf/M Max. |
| Dielectric strength | Ac 1.5 Kv/2 Sec. |
| Spark Test | 2.5 Kv |
Insulation
| Unaged | Tensile Strength: 2400 Psi Min. (1.69 Kg/M(mxm)) Elongation: 300% Min. |
|---|---|
| Aged | Tensile Strength: Unaged Min. 75%(100°C×48hrs) Elongation: Unaged Min. 75%(100°C×48hrs) |
Jacketed
| Unaged | Tensile Strength: 2000 Psi Min.(1.41 Kg/M(mxm)) Elongation: 100% Min. |
|---|---|
| Aged | Tensile Strength: Unaged Min. 85%(100°C×240hrs) Elongation: Unaged Min. 50%(100°C×240hrs) |
| Insulation Shrink back | 150m/M, 121°C±1°C×1hr≦9.5m/M |
| Cold Bend Test | 20°C×4hrs No.Crack |
| Flame Retardant Test | CMR |
| Ac Leakage Current Through Overall Jacket | Ac 1500v≦10 Ma |
| Dc Resistance Unbalance | 5% Max. |
| Pair-To-Ground Capacitance Unbalance | 330 Pf/100m Max. |
| Characteristic Impedance | 1 - 350 MHz 100±15 Ohms |
| Structural Return Loss | 350 MHz 10.6db Min. |
| Propagation Delay | 350 MHz 536ns/100m Max. |
| Delay Skew | 1 - 350 MHz 20ns/100m Max. |
Physical Properties
| Weight | 9.80 kg |
|---|
You must be logged in to post a review.
2L2801 Datasheet PDF
