AV Signal Distribution

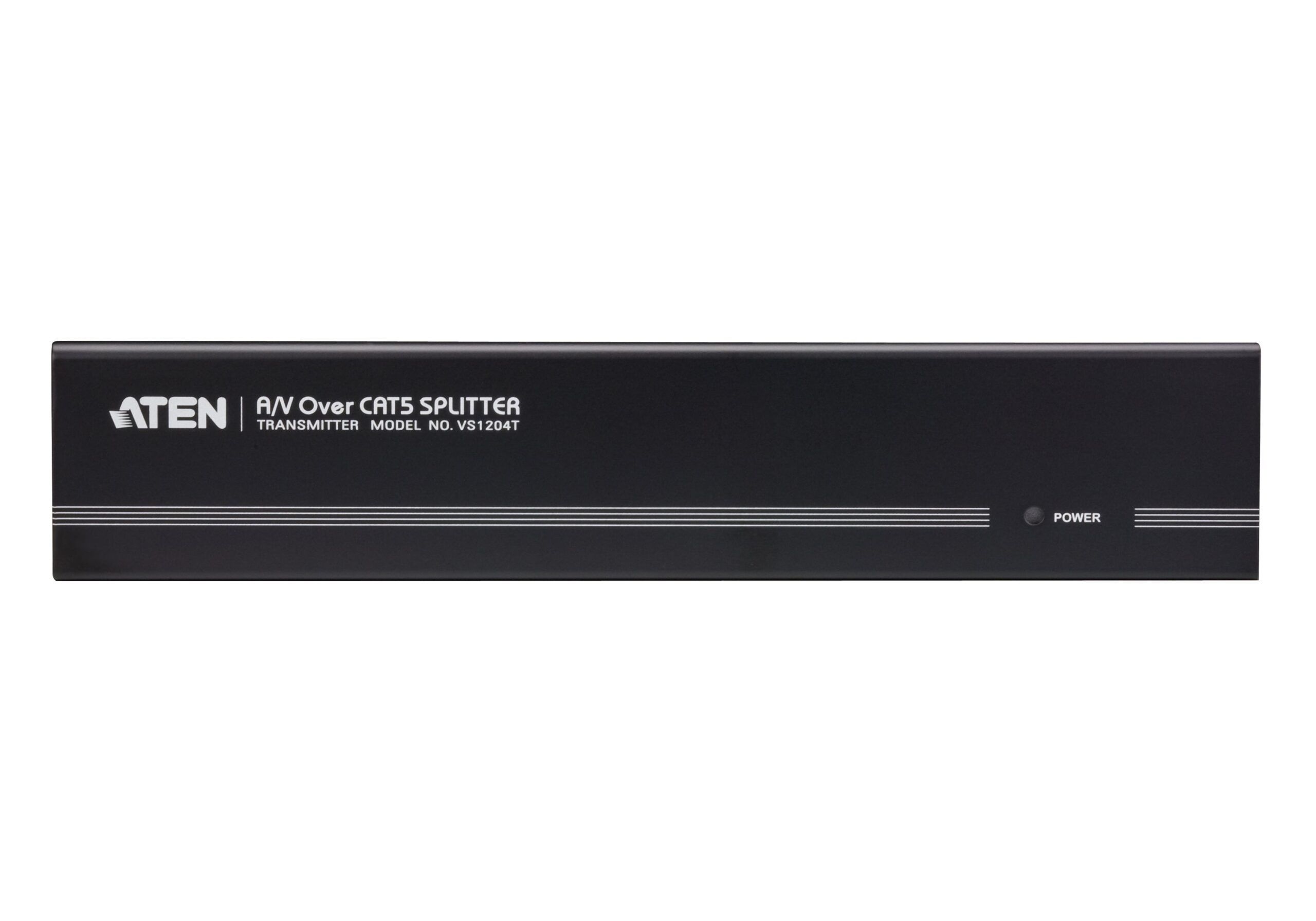

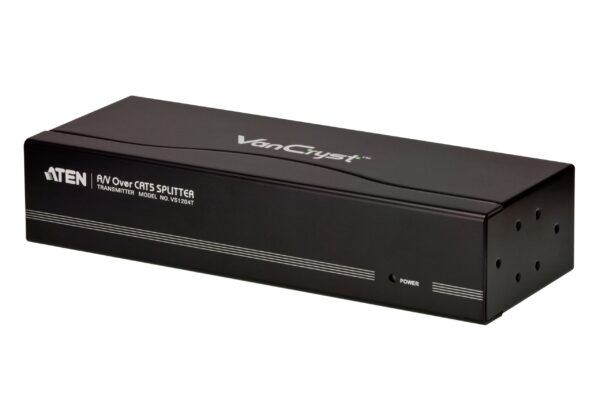

Aten Extender, VGA, 4 Port with CAT5 Out – VS1204T
R2,339.54
• One audio/video input to 4 audio/video outputs via Cat 5e cable
• Supports local display + 4 remote displays
• Supports up to 225 MHz bandwidth
• Uses Cat 5e cable to extend displays up to 300 m
• Superior video quality – up to 1920 x 1200@60Hz
• Audio enabled (mono)
• Built-in 8KV/15KV ESD protection
• Rack-mountable
- Brand :Aten
- SKU :ATEN-VS1204T
- Category :AV Signal Distribution
- Availability :
In Stock
4 in stock
Description
The VS1204T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers*, the VS1204T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
Package Contents
1x VS1204T A/V Over Cat 5 Splitter
1x Power Adapter
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x User Instructions

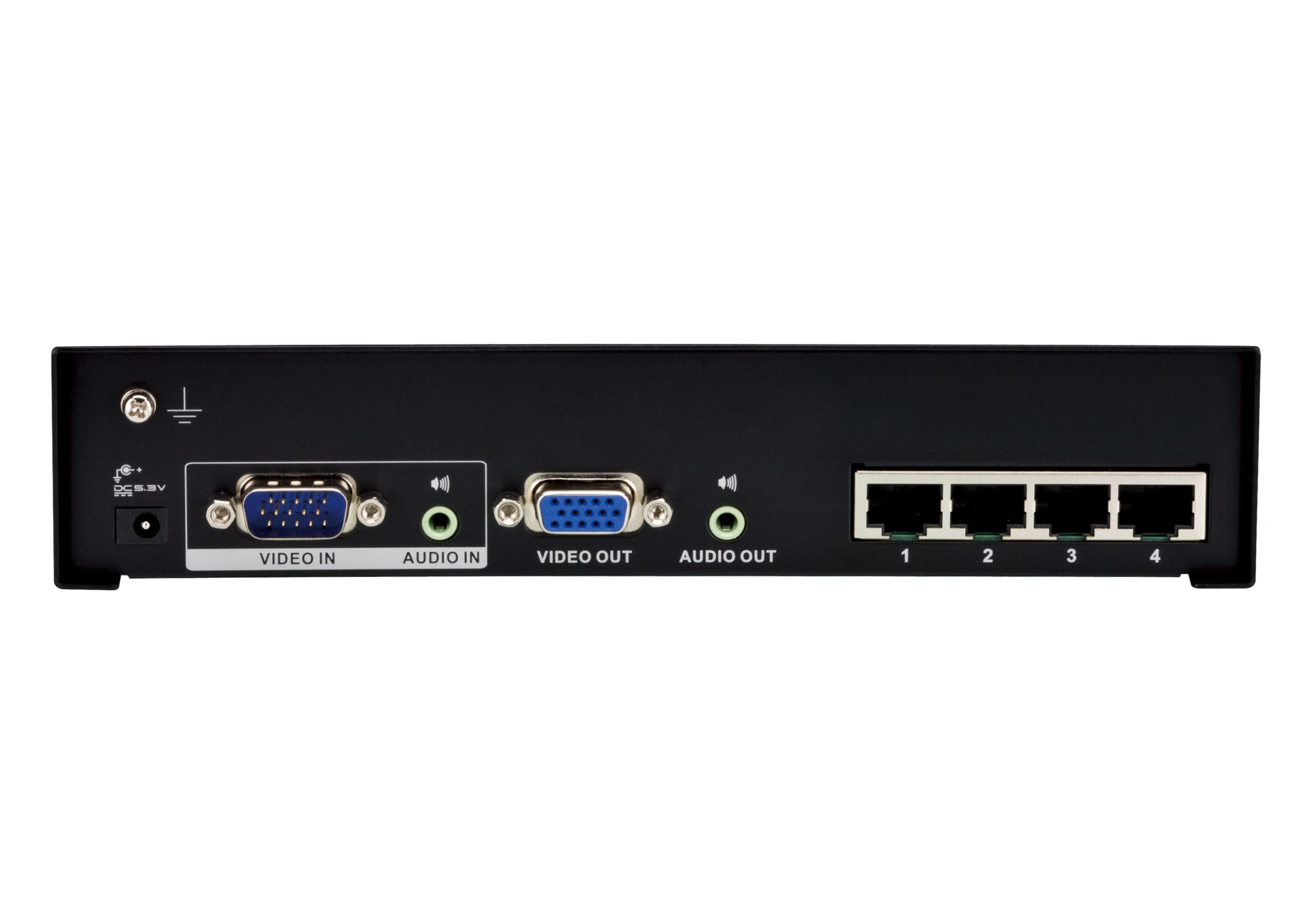

Video Input
| Interfaces | 1 x HDB-15 Male (Blue) |
|---|---|
| Impedance | 75 Ω |
| Max. Distance | 1.8 m |
Video Output
| Interfaces | 1 x HDB-15 Female (Blue) - Local Output 4 x RJ-45 Female |
|---|---|
| Impedance | 75 Ω |
Video
| Max. Bandwidth | 225 MHz |
|---|---|
| Max. Resolutions / Distance | Up to 1920 x 1200@60Hz@150m; 1280 x 1024@60Hz@300m |
Audio
| Input | 1 x Mini Stereo Jack Female (Green) |
|---|---|
| Output | 1 x Mini Stereo Jack Female (Green) |
Connectors
| Power | 1 x DC Jack (Black) |
|---|---|
| Power Consumption | DC5.3V:3.55W:17BTU |
Environmental
| Operating Temperature | 0-50°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.59 kg ( 1.3 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.) |
| Carton Lot | 5 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
You must be logged in to post a review.
VS1204T Datasheet PDF
