AV Signal Distribution

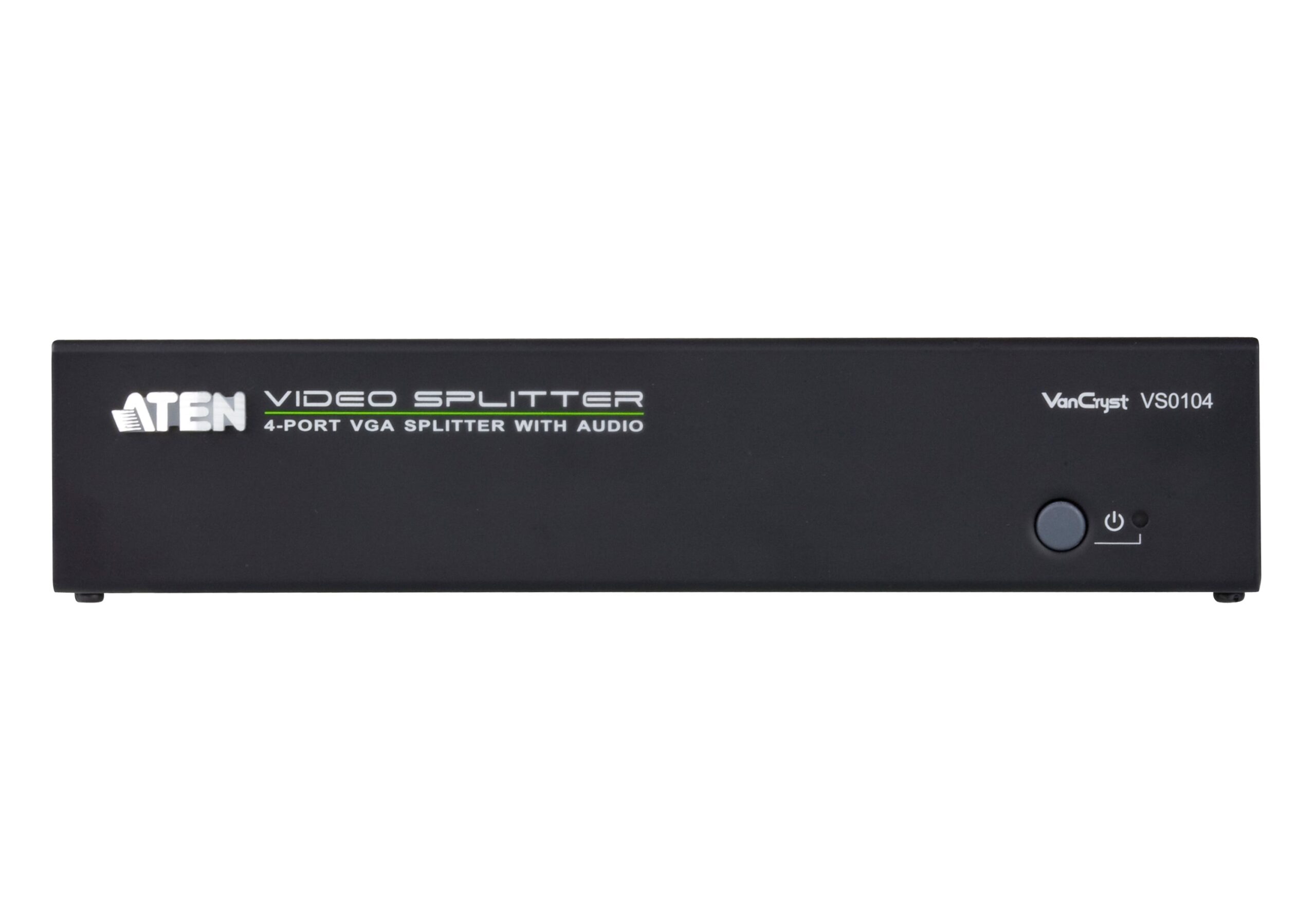

Aten Splitter, VGA, 4 Port with Audio – VS0104
R1,750.88
• One video input to 4 video outputs
• Supports up to 450MHz bandwidth for high performance video
• Superior video quality – up to 1920 x 1440 @ 60Hz
• Supports stereo audio
- Brand :Aten
- SKU :ATEN-VS0104
- Category :AV Signal Distribution
- Availability :
In Stock
6 in stock
Description
The ATEN VS0104 4-Port VGA Splitter with Audio is VGA splitter that allow a single VGA video and audio signal to be distributed to four output displays with independent stereo control. The splitter support up to 450MHz video bandwidth, which provides optimum video quality, supported by resolutions up to 1920×1440.
Furthermore, for complete systems integration, serial control is standard through the VS0104 built-in RS-232 ports, which allow the splitter to be controlled through a high-end controller or PC.
The VS0104 is perfect for conference rooms, training facility & multi-display broadcasting, with cascadable support up to three levels allowing a single video signal to be sent across up to 64 video displays while sustaining the highest quality possible.
Package Contents
- 1x 4-Port VGA Splitter with Audio
- 1x Power Adapter
- 1x User Instructions

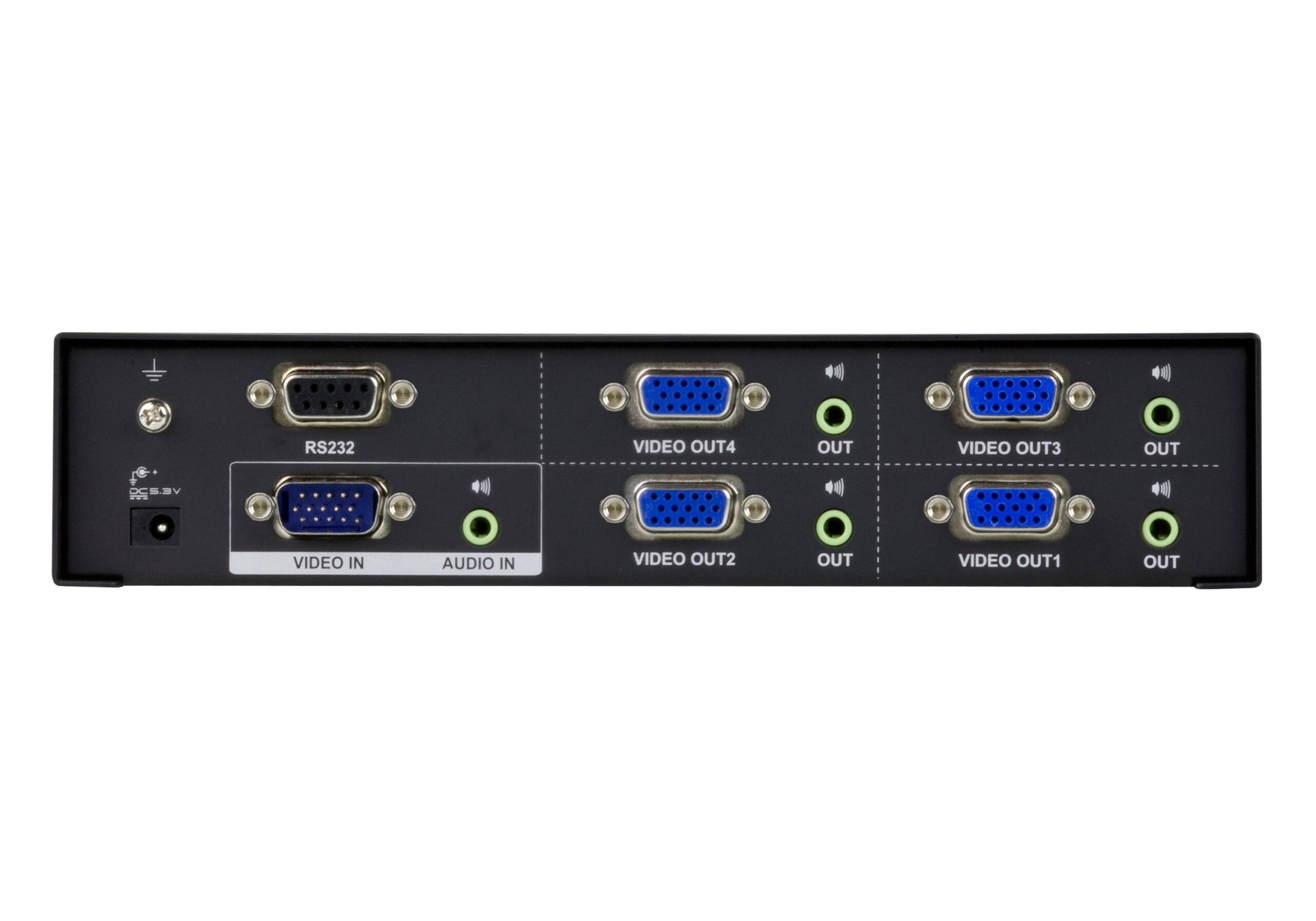

Video Input
| Interfaces | 1 x HDB-15 Male (Blue) |
|---|---|
| Impedance | 75 Ω |
| Max. Distance | 1.8 m |
Video Output
| Interfaces | 4 x HDB-15 Female (Blue) |
|---|---|
| Impedance | 75 Ω |
Video
| Max. Bandwidth | 450 MHz |
|---|---|
| Max. Resolution | Up to 1920 x 1440 |
| Max. Distance | Up to 30 m |
Audio
| Input | 1 x Mini Stereo Jack Female (Green) |
|---|---|
| Output | 4 x Mini Stereo Jack Female (Green) |
Control
| RS-232 | 1 x DB-9 Female (Black) |
|---|---|
| EDID Settings | EDID Mode: Port 1 / Auto / Default |
Connectors
| Power | 1 x DC Jack |
|---|---|
| Power Consumption | DC5.3V:1.13W:5BTU |
Environmental
| Operating Temperature | 0-50°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.68 kg ( 1.5 lb ) |
| Dimensions (L x W x H) | 20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.) |
| Carton Lot | 10 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
You must be logged in to post a review.
VS0104 Datasheet PDF
