KVM Signal Distribution

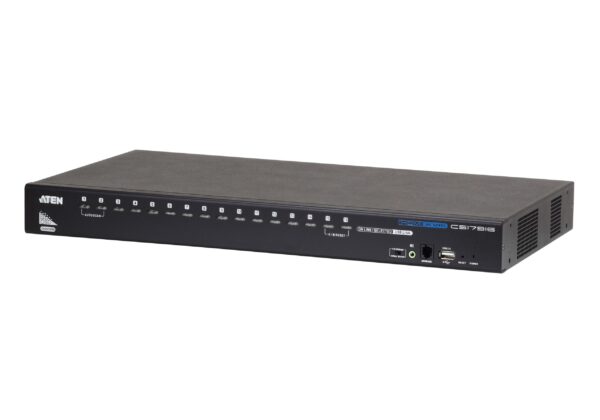

Aten KVM Switch, USB 2.0, HDMI, 16 Port – CS17916
R29,410.98
• Cascadable to two levels–control up to 256 computers
• Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
• Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.
- Brand :Aten
- SKU :ATEN-CS17916
- Category :KVM Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.
In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.
The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Package Contents
- 1x 16-Port USB HDMI KVM Switch with Rack Mounting Kit
- 2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
- 1x Firmware Upgrade Cable
- 1x Power Adapter
- 1x Foot Pad Set (4 pcs)
- 1x User Instructions
Computer Connections
| Direct | 16 |
|---|---|
| Maximum | 256 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
Connectors
| Console Ports | 1 x HDMI Female 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) |
|---|---|
| KVM Ports | 16 x HDMI Female 16 x USB Type B Female 16 x 3.5mm Audio Jack Female (Green) |
| Firmware Upgrade | 1 x RJ11 Female |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front panel, 1 x rear panel) |
Switches
| Port Selection | 16 x Pushbutton |
|---|---|
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
LEDs
| USB Link | 16 (Green) |
|---|---|
| Power | 1 (Dark Green) |
| On Line /Selected | 16 (Orange) |
Emulation
| Keyboard / Mouse | USB |
|---|---|
| Video | 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz |
| Scan Interval | 1 – 255 seconds (default: 5 sec.) |
| Power Consumption | DC5V:9.18W:69BTU |
Environmental
| Operating Temperature | 0 – 50°C |
|---|---|
| Storage Temperature | 20 – 60°C |
| Humidity | 0 – 80% RH, Non-condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 3.86 kg ( 8.5 lb ) |
| Dimensions (L x W x H) | 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
You must be logged in to post a review.
CS17916 Datasheet PDF
