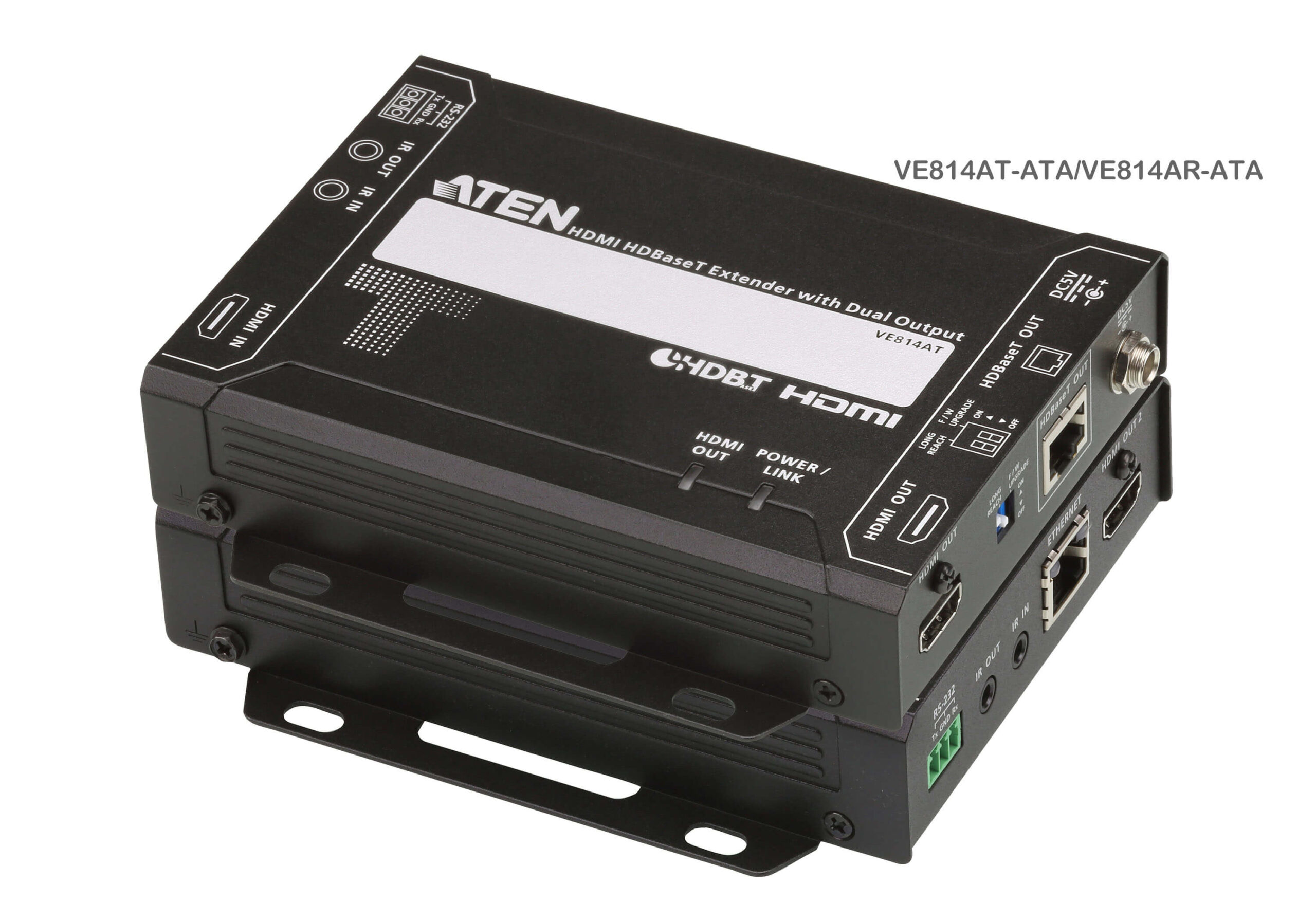

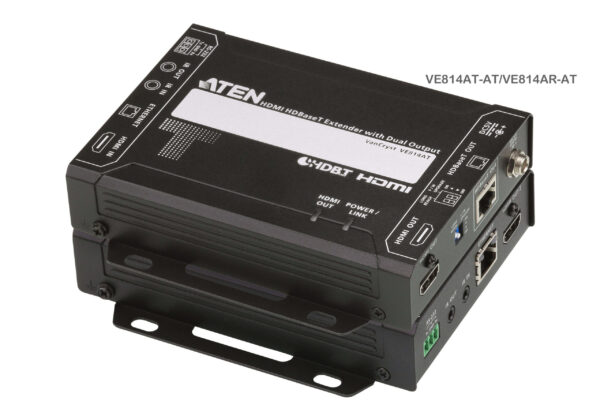

Aten Extender, HDMI, HDBaseT, Transmitter and Receiver with Dual Output – VE814A
R18,247.92
• Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• HDMI (3D, Deep Colour, 4K); HDCP 2.2 compatible
• Superior video quality:
• 4K up to 100 m
• 1080p up to 150 m when in HDBaseT Long Reach Mode
• Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
- Brand :Aten
- SKU :ATEN-VE814A
- Category :AV Signal Distribution
- Availability :
In Stock
2 in stock
Description
ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Colour, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814A supports RS-232 and IR signalling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.
The VE814A is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.
Package Contents
1x VE814AT Transmitter
1x VE814AR Receiver
1x IR Transmitter Cable
1x IR Receiver Cable
2x RS-232 Terminal Blocks
2x Power Adapters
1x User Instructions
Output
| VE814AR | 2 x HDMI Type A Female (Black) |
|---|---|
| VE814AT | 1 x HDMI Type A Female (Black) |
You must be logged in to post a review.
VE814A Datasheet PDF
