AV Signal Distribution

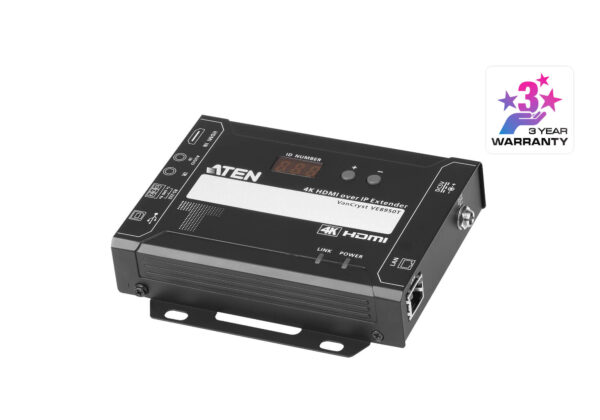

Aten Extender, HDMI Over IP, Transmitter – VE8950T
R15,773.38
• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
• Delivers visually lossless high-quality video up to 4K @ 60 Hz 4:2:0 and 4K @ 30 Hz 4:4:4
• Effortlessly switches via top panel pushbuttons
• USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals
- Brand :Aten
- SKU :ATEN-VE8950T
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch.
The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:
• Limitless scalability and flexibility
• No complicated IP setup
• No additional server PCs or software required
• Go further for less with daisy chaining
Package Contents
1x VE8950T 4K HDMI over IP Transmitter
1x RS-232 Terminal block
1x 5V Power adapter
1x User instructions
Video Input
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 3 m |
Video
| Max. Data Rate | Average: 150 ~ 500Mbps |
|---|---|
| Compliance | HDMI (4K) HDCP Compatible |
| Max. Resolutions / Distance | Up to 4K@100m (Cat 5e/6, point to point) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
Audio
| Input | 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green) |
|---|
Connectors
| Unit To Unit | 1 x RJ-45 Female |
|---|---|
| Power | 1 x DC Jack (Black) with locking |
Control
| IR | 1 x Mini Stereo Jack Female (Black) |
|---|---|
| RS-232 | Connector: 1 x Terminal Block, 3 pole Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control |
| USB | 1 x USB Type B Female (White) |
Pushbuttons
| ID Number Selection | 2 x Push buttons |
|---|---|
| Power Consumption | DC5V:3.08W:14BTU |
Environmental
| Operating Temperature | 0 - 40°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.50 kg ( 1.1 lb ) |
| Dimensions (L x W x H) with bracket | 14.02 x 12.30 x 3.06 cm (5.52 x 4.84 x 1.2 in.) |
| Dimensions (L x W x H) without bracket | 13.60 x 10.10 x 2.96 cm (5.35 x 3.98 x 1.17 in.) |
| 720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9) | 720x576p @ 100Hz (16:9) |
| 1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/ 119.88/120 Hz (16:9) | 1440x480p @ 59.94/60Hz (4:3)/(16:9) |
| 1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz | 1440x576p @ 50Hz (4:3)/(16:9) |
| 1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9) | (2880)x480p @ 59.94/60Hz (4:3)/(16:9) |
| 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/ 119.88/120Hz (16:9) | 1680x720p @ 23.98/24/25/29.97/30/50/59.94/ 60/100/ 119.88/120 Hz |
| 720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9) | 2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz |
| 720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9) | 3840x2160p @ 23.98/24/25/29.97/30/50/59.94/60 Hz (16:9) |
| 720 (1440)x288p @ 50Hz (4:3)/(16:9) | 3840x2160p @ 23.98/24/25/29.97/30Hz |
| 720 (1440)x240p @ 59.94/60/119.88/120/239.76/ 240Hz (4:3)/(16:9) | 4096x2160p @ 23.98/24/25/29.97/30Hz |
