AV Signal Distribution

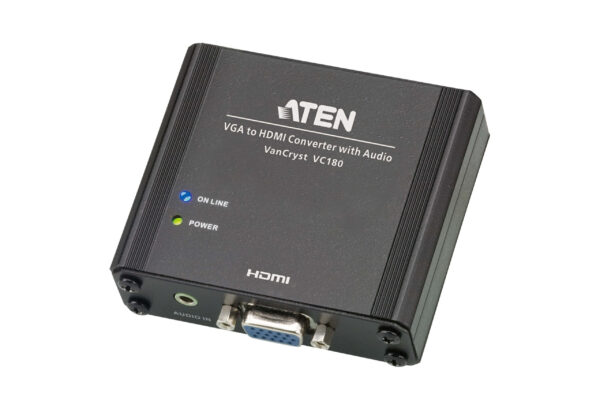

Aten Converter, VGA to HDMI with audio – VC180
R2,112.77
• Converts VGA signals to HDMI output
• Supports analogue stereo audio input
• Superior video quality – up to 1080p, WUXGA
• Screen Position Button – screen position settings can be stored for each output resolution
• Multiplatform support – Windows and Mac
• Supports dual power sources: VGA port or power adapter (in case the VGA port cannot provide sufficient power)
• Automatically detects video input signals
• LED indicator
• HDMI compatible
• Compact and lightweight
• No software required – eliminates incompatibility and installation issues
- Brand :Aten
- SKU :ATEN-VC180
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The VC180 is a VGA-to-HDMI Converter with Audio that lets you view VGA source data in an HDMI output display with stereo sound quality. It uses dual power sources – from the VGA port or a power adapter. The VC180 gets its power supply from the VGA port. However if your source device is not capable of supplying power, use the power adapter to connect the VC180 to a power source. The VC180 is compact, flexible and convenient to install – with no software required. Simply make the hardware connections and enjoy the experience.
Package Contents
1x VC180 VGA to HDMI Converter with Audio
1x Power Adapter
1x User Instructions
Video Input

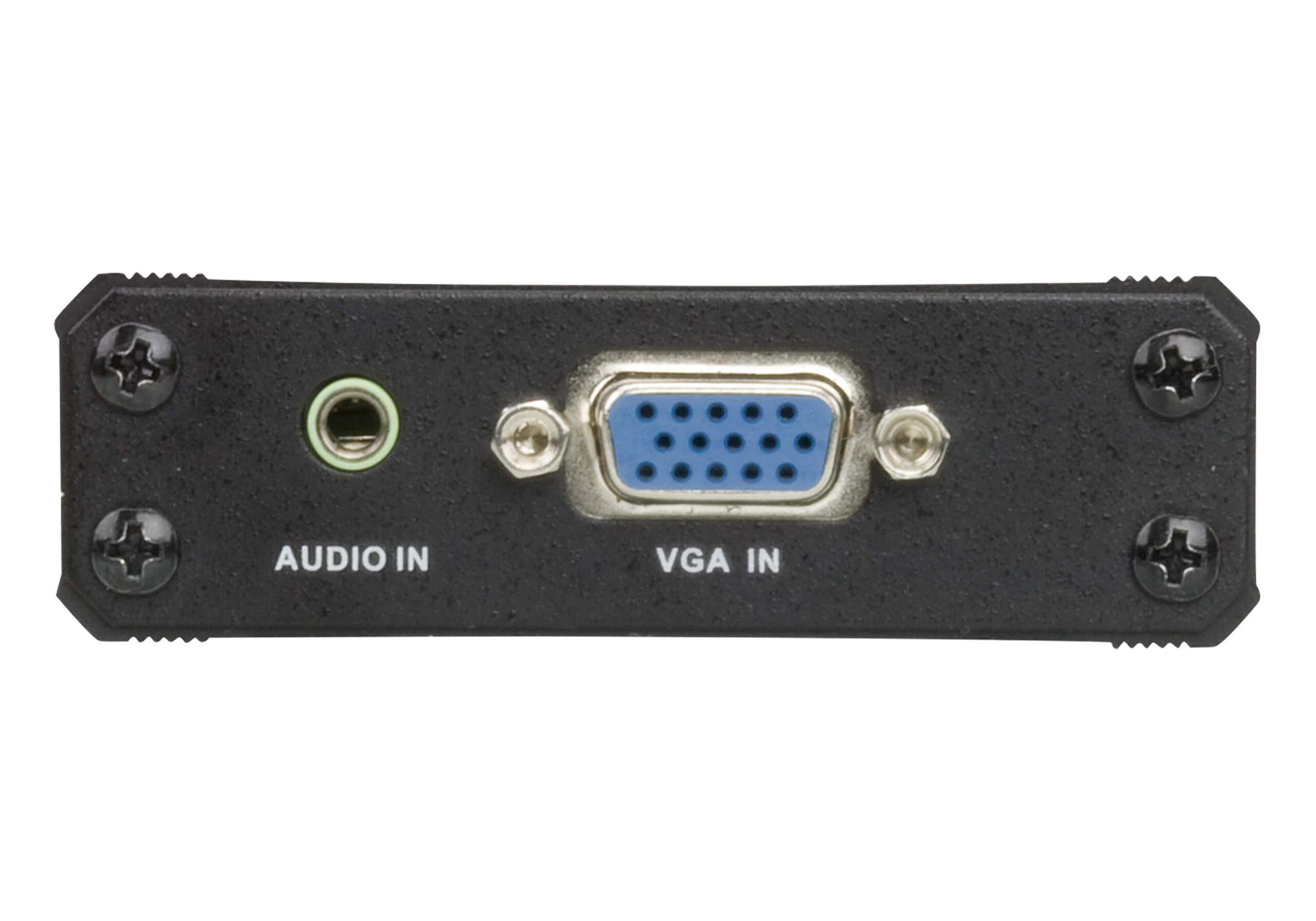

| Interfaces | 1 x HDB-15 Female (Blue) |
|---|---|
| Impedance | 75 Ω |
Video Output

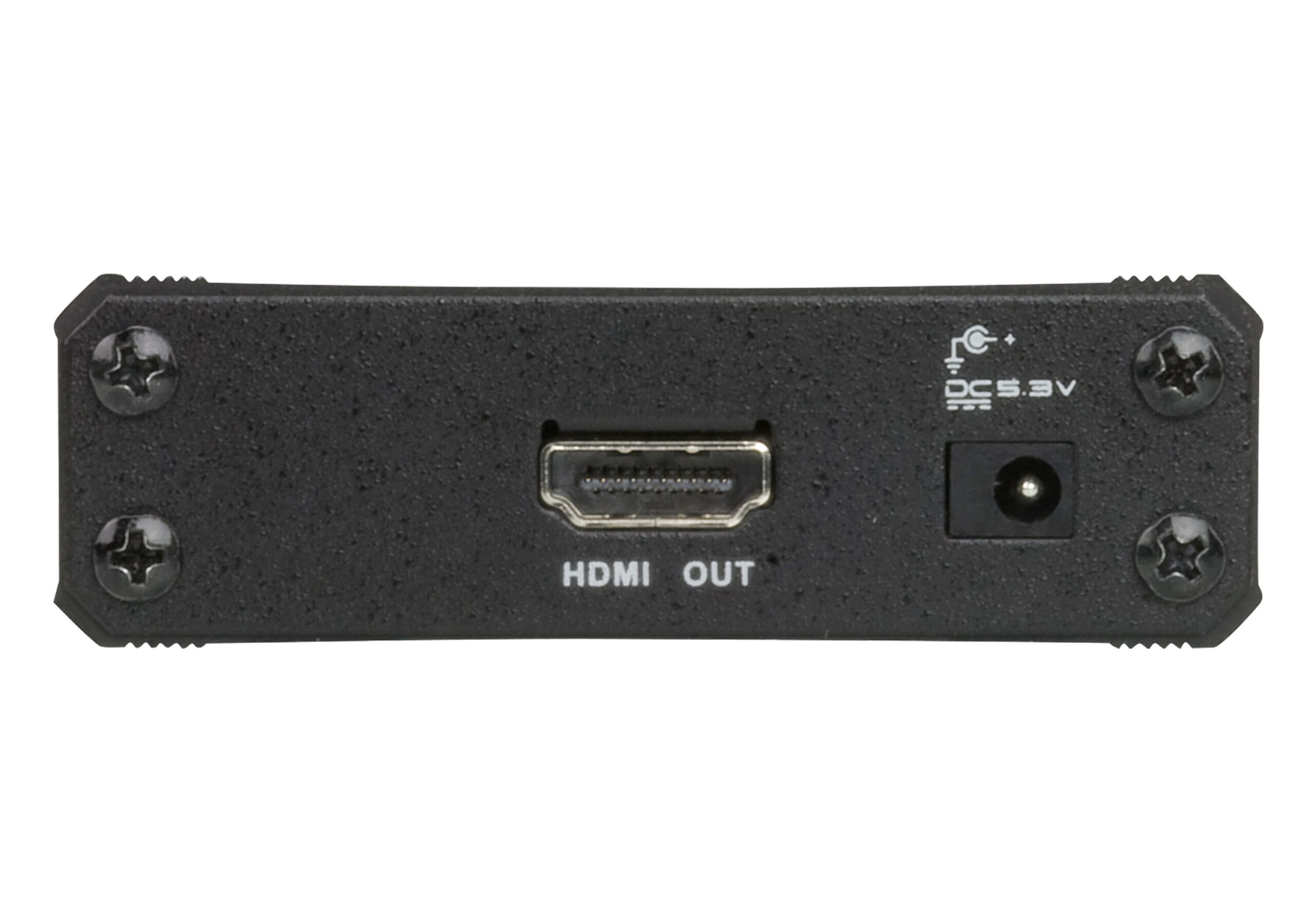

| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
Video
| Max. Pixel Clock | 165 MHz |
|---|---|
| Max. Resolution | Up to 1080p |
Audio
| Input | 1 x Mini Stereo Jack Female (Green) |
|---|
Connectors
| Power | 1 x DC Jack |
|---|---|
| Power Consumption | DC5V:2.62W:12BTU |
Environmental
| Operating Temperature | 0 - 50 ºC |
|---|---|
| Storage Temperature | 20 - 60 ºC |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.16 kg ( 0.35 lb ) |
| Dimensions (L x W x H) | 7.90 x 7.81 x 2.44 cm (3.11 x 3.07 x 0.96 in.) |
| Carton Lot | 20 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
You must be logged in to post a review.
VC180 Datasheet PDF
