Description

• The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

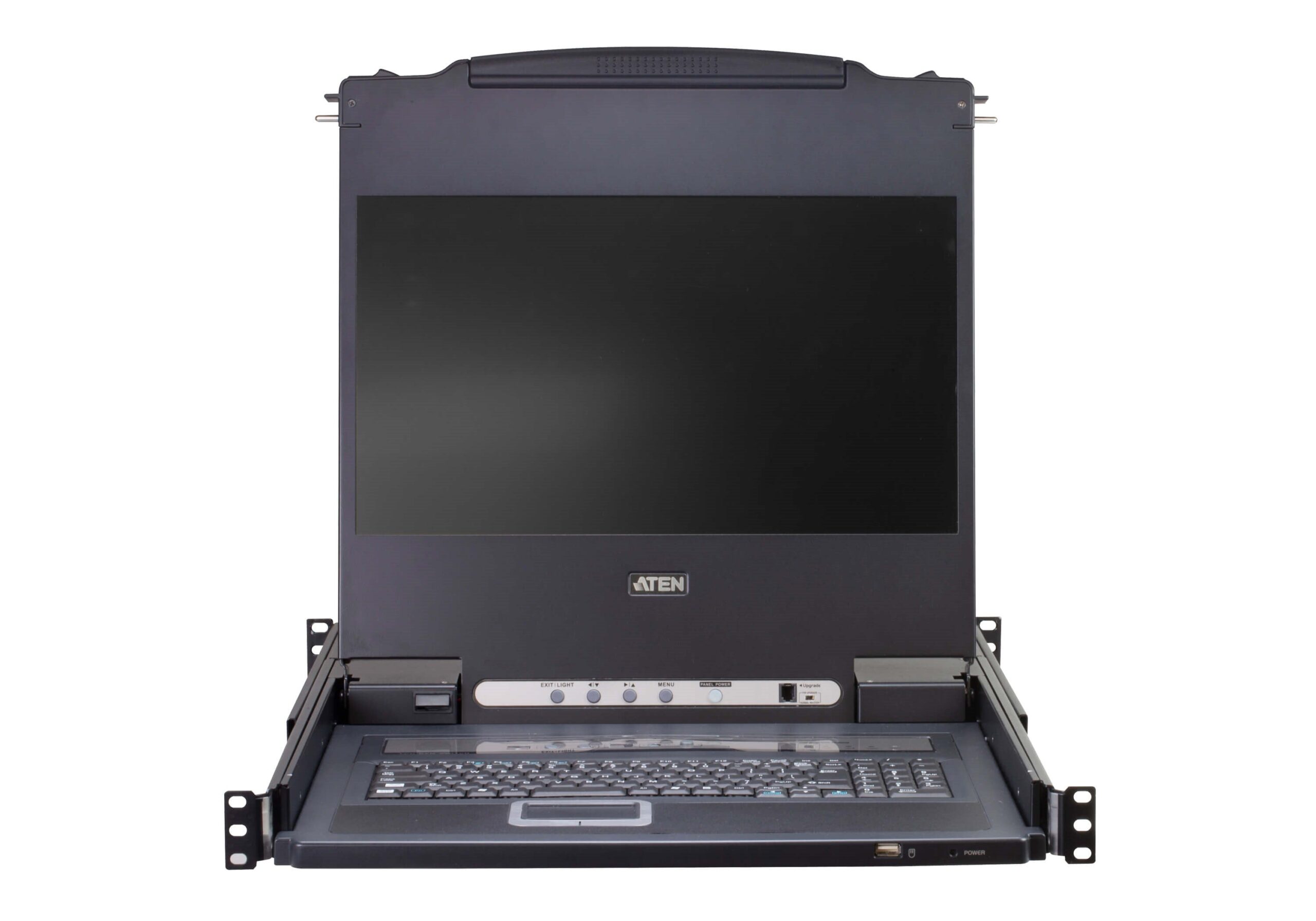

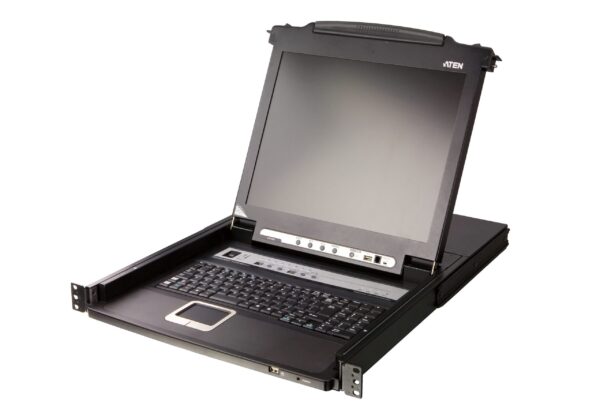

• The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17″, 17.3″ or 19″ LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.

• The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

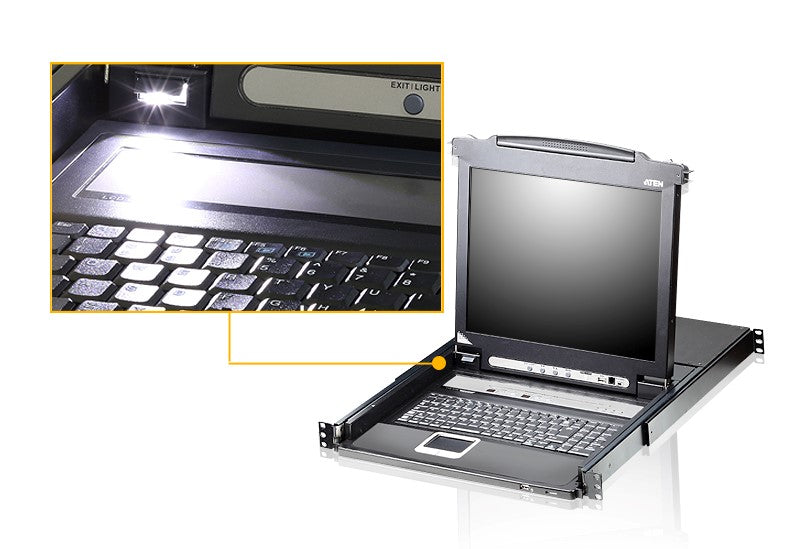

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

• Integrated KVM console with 17”, 17.3”or 19“ LED-backlit LCD monitor in a Slideaway™ housing

• Available with or without fingerprint identification reader

• Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers

• Daisy-chain up to 31 additional units – controls up to 256 computers from a single console

• Dual interface – supports computers and console with PS/2 or USB keyboards and mice

• USB port allows each computer to access USB peripherals (inapplicable to CL5708MW)

• LCD module rotates up to 120 degrees for a more comfortable viewing angle

• Multiplatform support – Windows, Linux, Mac, and Sun

• Supports multimedia USB keyboards for PC, Mac and Sun

• Auto PS/2 and USB interface detection

• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere

• Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)

• Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5708M / CL5708FM / CL5708N) and 1920 x 1080 @ 60 Hz (CL5708MW)

• No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus

• Auto-senses station’s position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station’s position

• Port names automatically reconfigured when station sequence is changed

• Two level password security – only authorized users can view and control computers

• Supports one administrator and four user accounts with separate profiles

• Auto Scan mode enables continuous monitoring of user-selected computers

• Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation

• Hot pluggable

• Beeper on / off via hotkey and OSD

• Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable

• Optional rack mount kits available including easy installation options

• Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese
