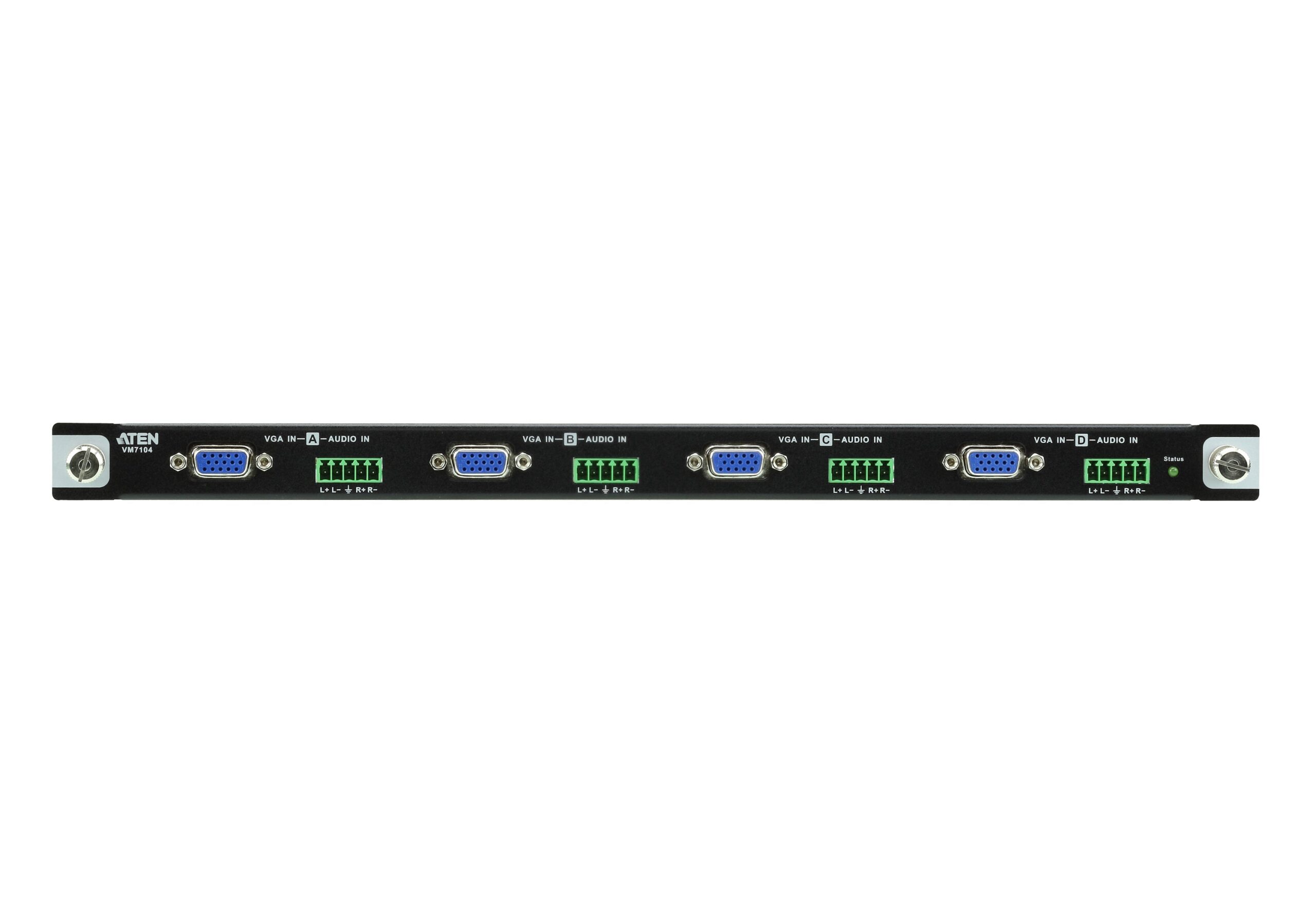

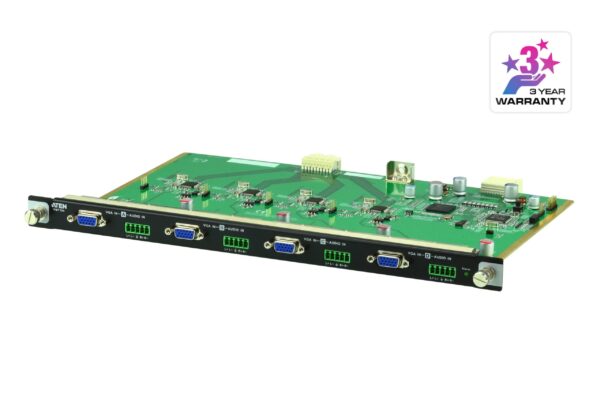

Aten VGA Input Board, 4 Port – VM7104
R34,053.58
• Connects up to 4 VGA or Component inputs
• Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
• Hot-swappable design for easy integration of I/O boards
• Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility
- Brand :Aten
- SKU :ATEN-VM7104
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed.
Package Contents
1x VM7104 4-Port VGA Input Board
4x Terminal Block Connectors
1x User Instructions
Video Input
| Interfaces | 4 x HDB-15 Female (Blue) |
|---|---|
| Impedance | 75 Ω |
| Max. Bandwidth | 300 MHz |
| Max. Resolution | Up to 1920 x 1200 |
| Max. Distance | 1.8 m |
Audio Inputs
| Interfaces | 4 x Captive Screw Connectors, 5 pole * Audio signal type: stereo, balanced/unbalanced. |
|---|---|
| Power Consumption | 7.1W:33BTU |
Environmental
| Operating Temperature | 0–40°C |
|---|---|
| Storage Temperature | 20–60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 0.56 kg ( 1.23 lb ) |
| Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
| Note | Audio signal type support stereo, balanced/unbalanced. Balanced audio maximum input/output level: 0.5 Vrms (-6.02dBV@600 ohm ) Unbalanced audio maximum input/output level: 1Vrms (0dBV@600ohm.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
