AV Signal Distribution

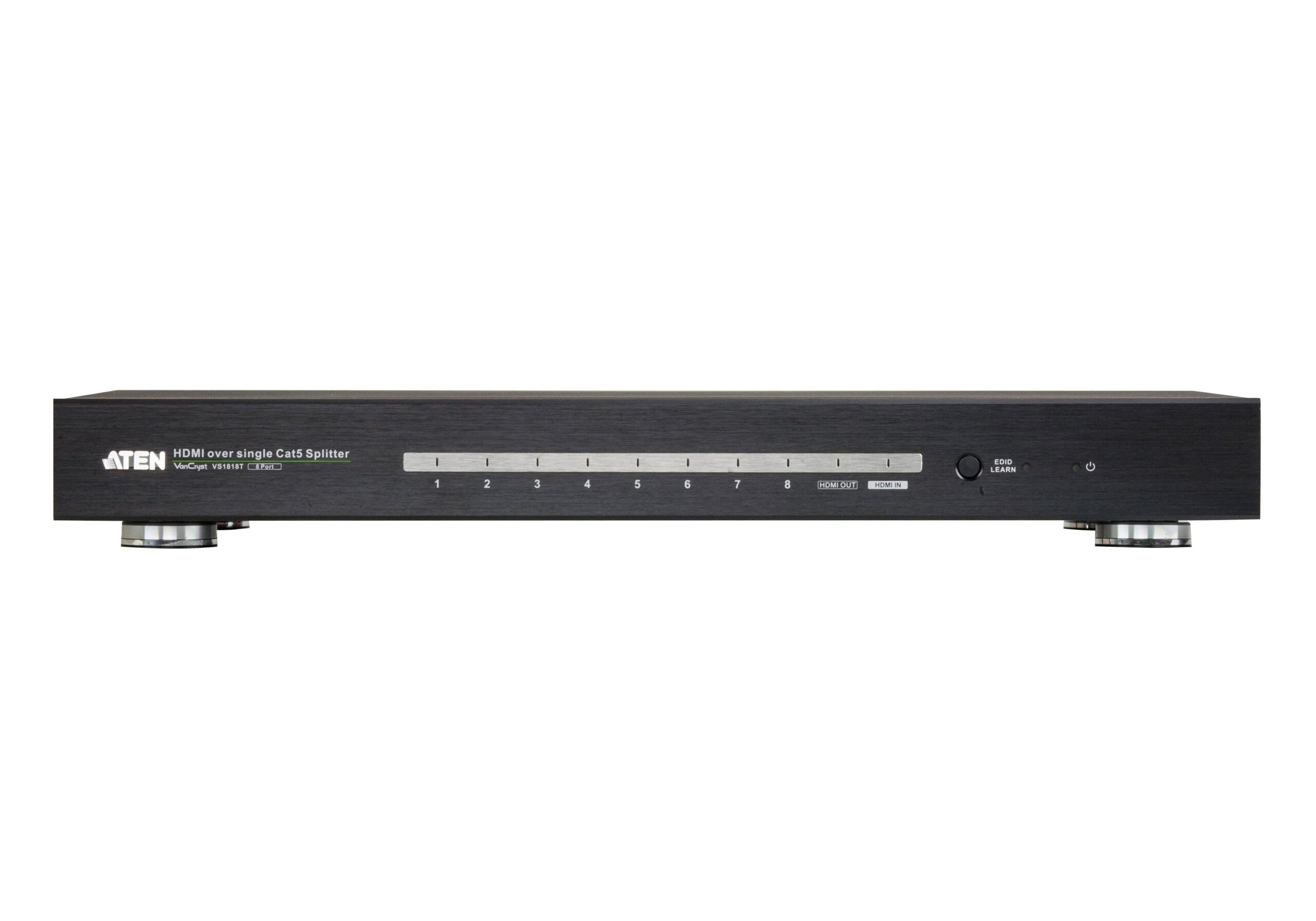

Aten HDBaseT Splitter, HDMI, 8 Port – VS1818T
R67,228.88
• One HDMI input to 8 HDMI outputs via a Cat 5e cable
• Extends displays up to 100 m
• Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
- Brand :Aten
- SKU :ATEN-VS1818T
- Category :AV Signal Distribution
- Availability :Out of Stock
Out of stock
Description
The VS1818T HDMI over single Cat 5 Splitter provides a fast and efficient way of switching high definition video from one input source to 8 displays. Incorporating suggested HDBaseT receivers*, the VS1818T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Compatible with ATEN HDBaseT/HDBaseT-Lite Receiver Unit.
The solution implements HDBaseT extension technology to connect the VS1818T to receiver units over one single Cat 6 cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1818T solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
• Sporting events
• Theatre and lecture overview rooms
• Classroom and company training facilities
Package Contents
- 1x VS1818T 8-Port HDMI Over Single Cat 5 Splitter
- 1x Power Cord
- 1x Mounting Kit
- 1x User Instructions
Video Input
| Interfaces | 1 x HDMI Type A Female (Black) |
|---|---|
| Impedance | 100 Ω |
| Max. Distance | 1.8 m |
Video Output

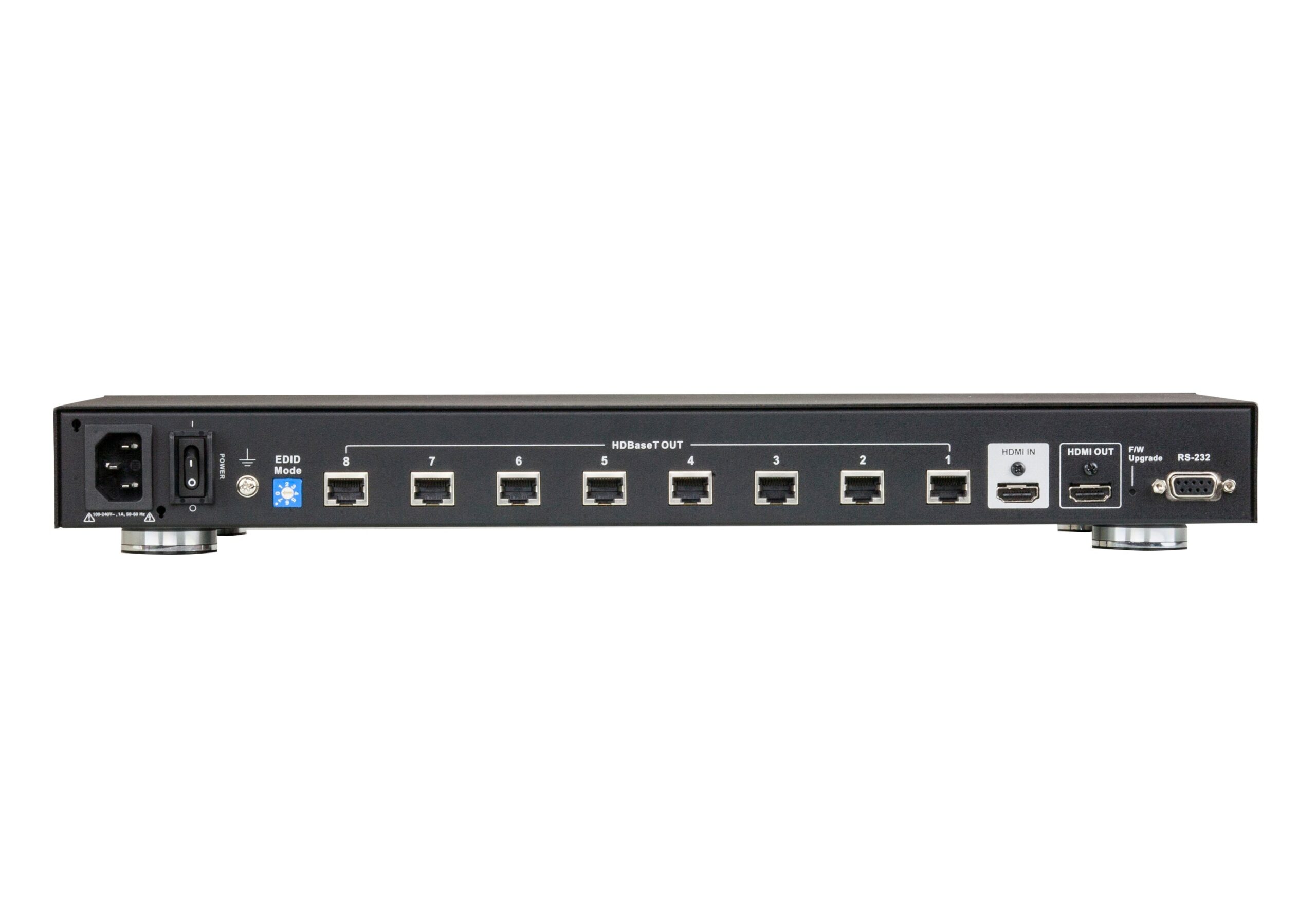

| Interfaces | 1 x HDMI Type A Female (Black) - Local Output 8 x RJ-45 Female |
|---|---|
| Impedance | 100 Ω |
Video
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
|---|---|
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Colour, 4K) HDCP Compatible Consumer Electronics Control (CEC) HDBaseT Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) (Depends on connected receiver) |
| Max. Distance | Up to 100 m (Depends on connected receiver) |
Audio
| Input | 1 x HDMI Type A Female (Black) |
|---|---|
| Output | 1 x HDMI Type A Female (Black) |
Control
| RS-232 | Connector: 1 x DB-9 Female (Black) Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
|---|---|
| EDID Settings | EDID Mode: Default / Port 1 / Auto / Learn |
Connectors
| Power | 1 x 3-Prong AC Socket (Black) |
|---|---|
| Power Consumption | AC110V:31.7W:149BTU AC220V:31.7W:149BTU |
Environmental
| Operating Temperature | 0-50°C |
|---|---|
| Storage Temperature | 20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
Physical Properties
| Housing | Metal |
|---|---|
| Weight | 3.58 kg ( 7.89 lb ) |
| Dimensions (L x W x H) | 43.24 x 26.11 x 4.40 cm (17.02 x 10.28 x 1.73 in.) |
| Carton Lot | 1 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
